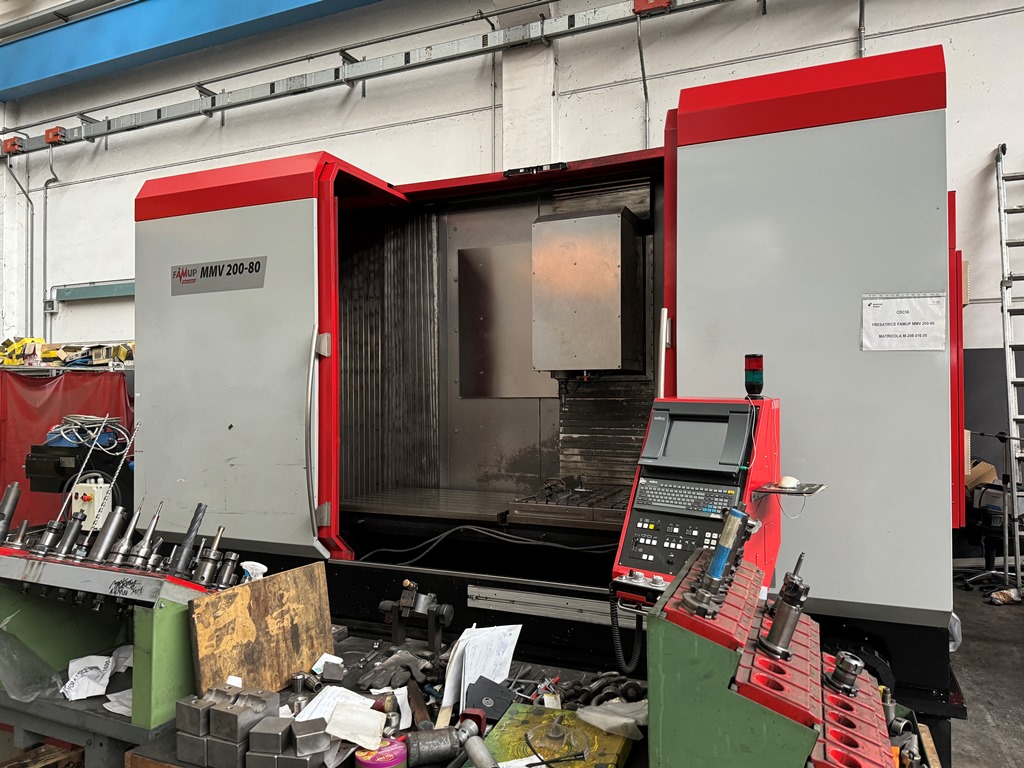

CENTER FAMUP MMV 200-80
Single pallet
machine center - vertical - Used Machines
FAMUP
09648
09648
MOVING COLUMN

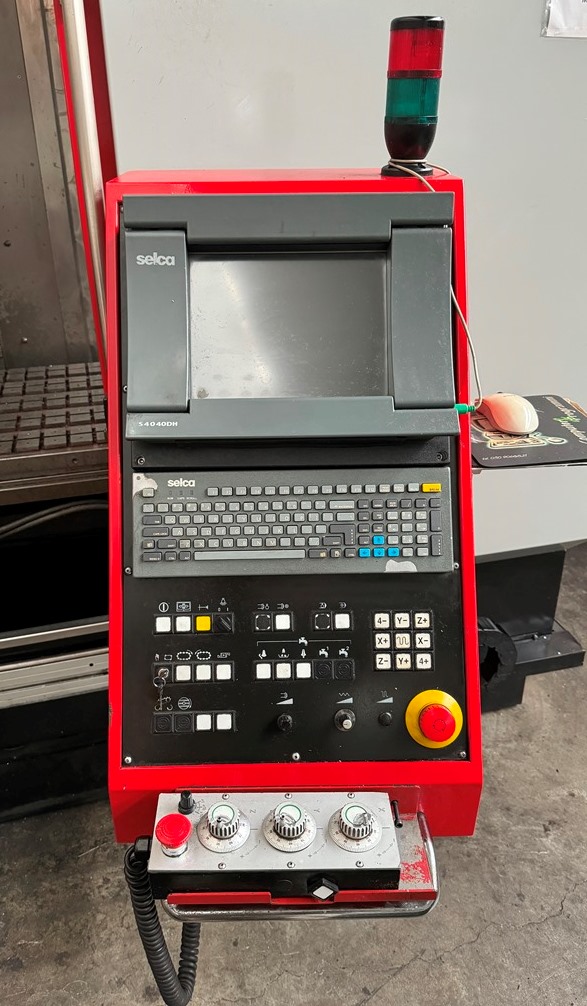

CNC SELCA 4040 DH
STROKES:
X axis 2000 mm
Y axis 800 mm
Z axis 700 mm

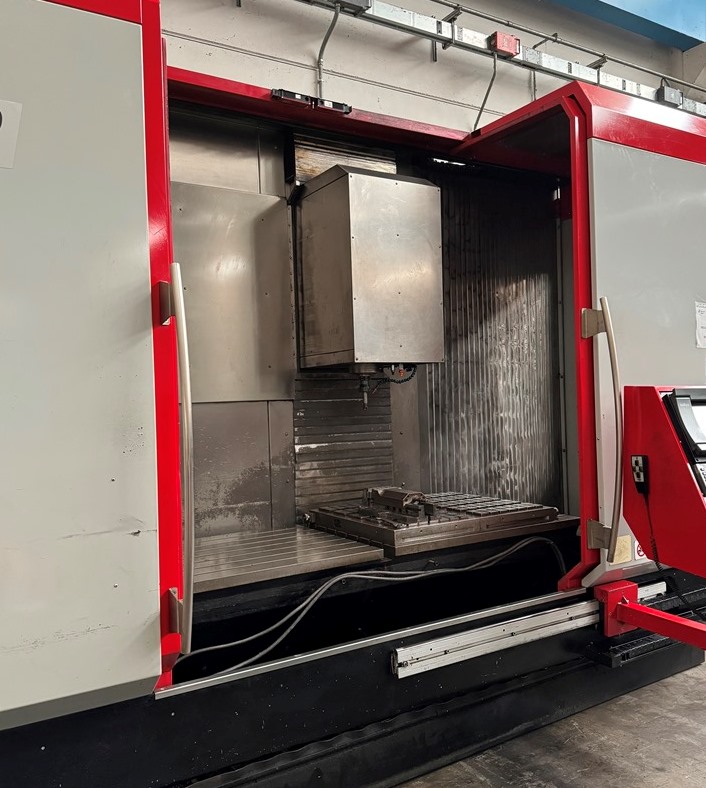

TABLE:
Table size 2400x800
T-slots 7
T-slots width mm 18
T-slots distance mm 100
Max table load Kg 2500
SPINDLE:
Spindle taper ISO 40 DIN 69871
Motor power max S6-60% 13.5 Kw
Motor power in continuous (S1) 12.5 Kw
Spindle speed 0-10.000 rpm
TOOL CHANGE:
Automatic 30 positions
Max tool width mm 76
Max tool length mm 280
Max tool weight 8 kg
WEIGHT:
Machine weight 13.000 kg
EQUIPPED WITH:
-Chain chip conveyor
USED MACHINE
YEAR 2005
IMAGES:
