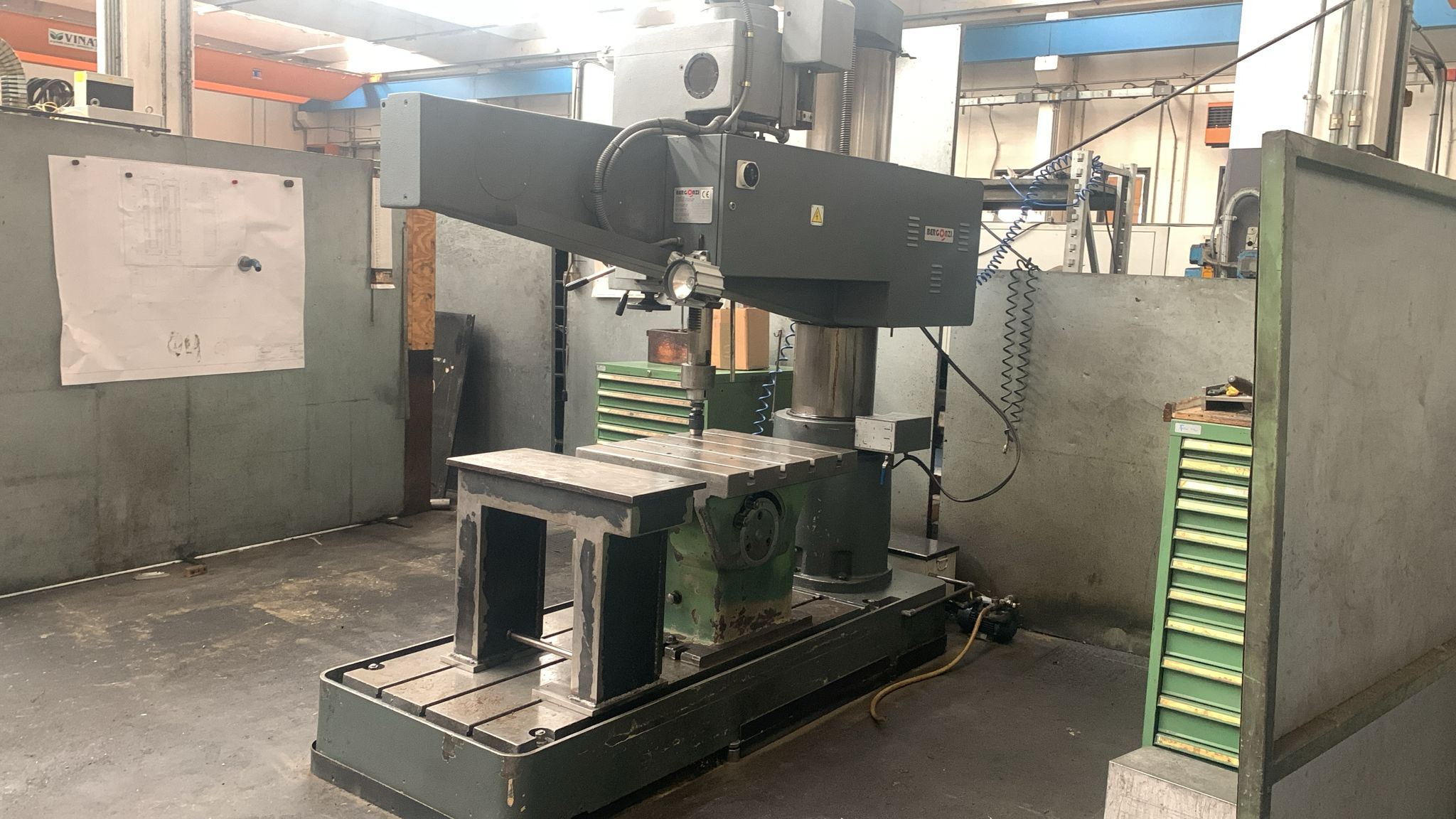

DRILLING BERGONZI SERIES 3
Radial
drilling - Used Machines
BERGONZI
09657
09657

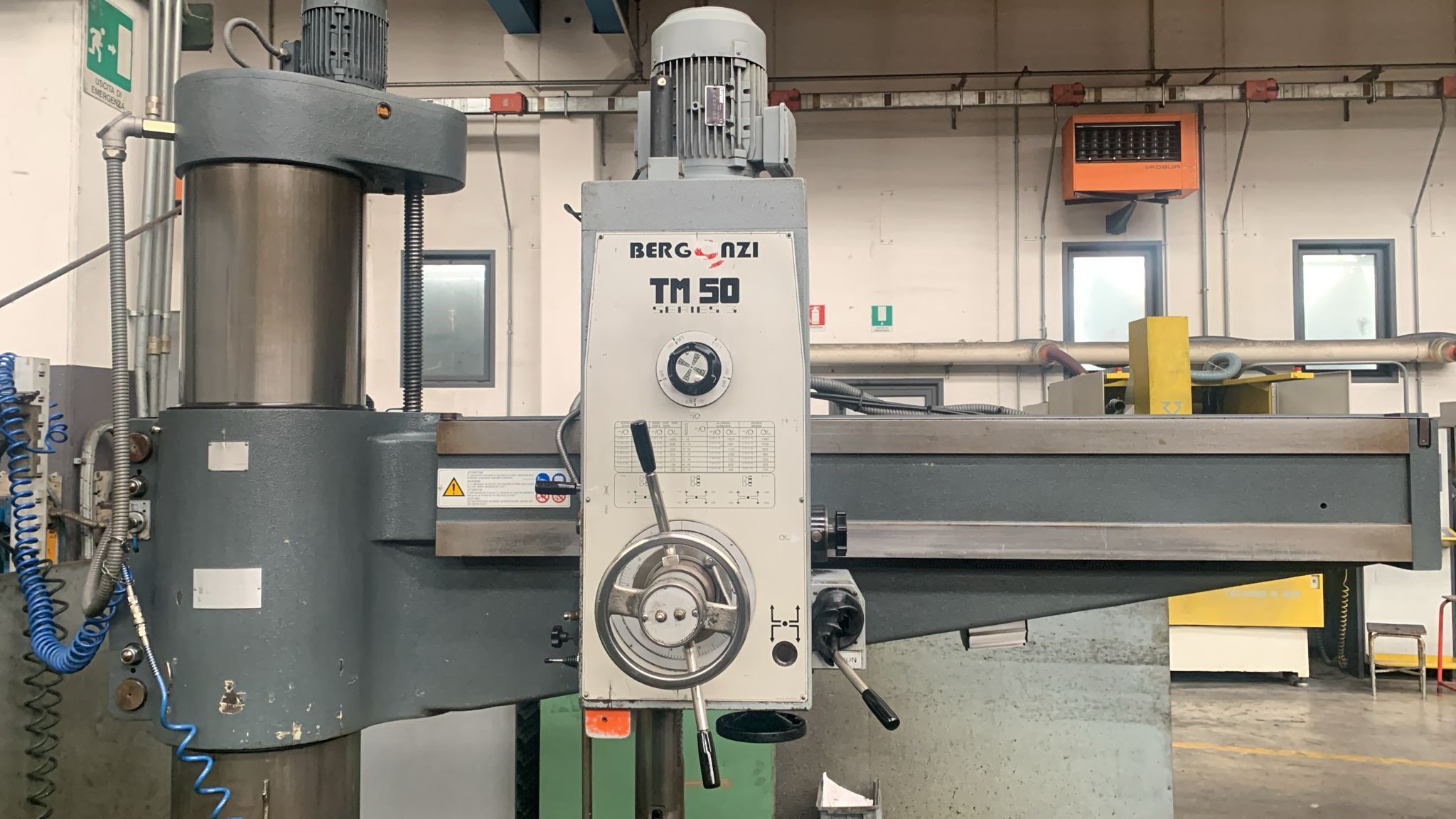

TM 50/1600
Hydraulic clamping
Maximum drilling capacity ø 50 on Fe, ø 65 mm on cast iron
Maximum tapping capacity 50 mm
Arm length 1600 mm
Column diameter 320 mm
Camber stroke 300 mm
Horizontal head stroke 1300 mm
Motor power 4 kw
Rotational speed 12 vel from 30 to 1400 rpm
Spindle attachment Morse taper 5
Vertical travel 770 mm
Overall dimensions 2300x1000xh2640 mm
Weight 2800 kg
EQUIPPED WITH:
-TILTING CUBE
USED MACHINE
