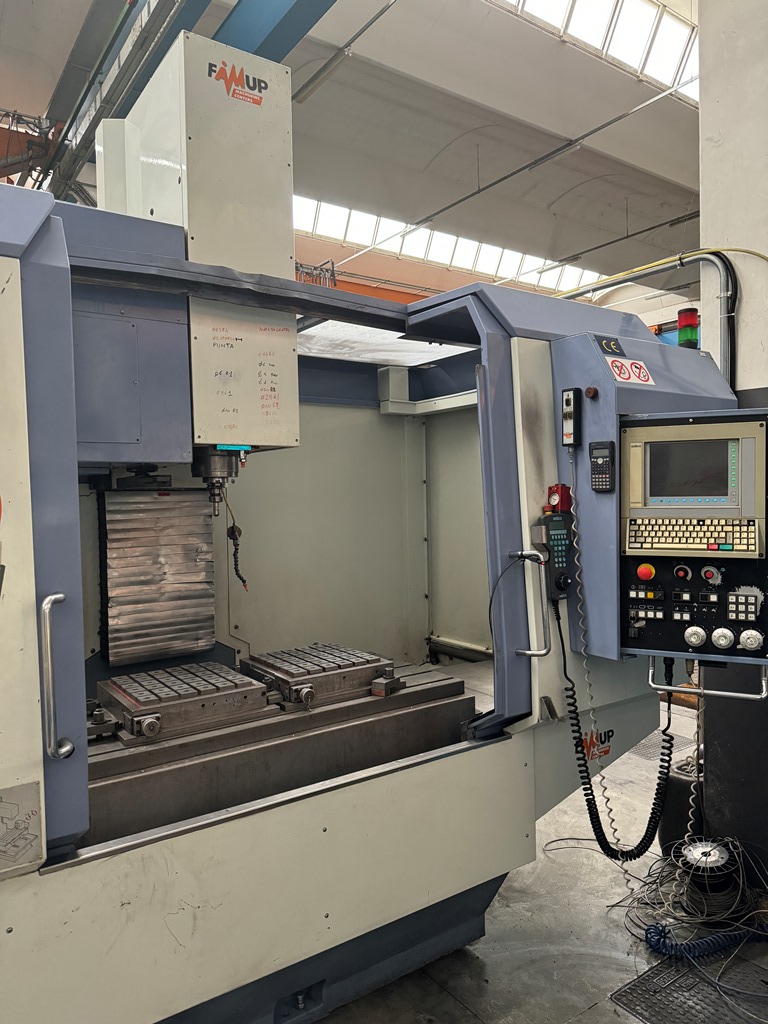

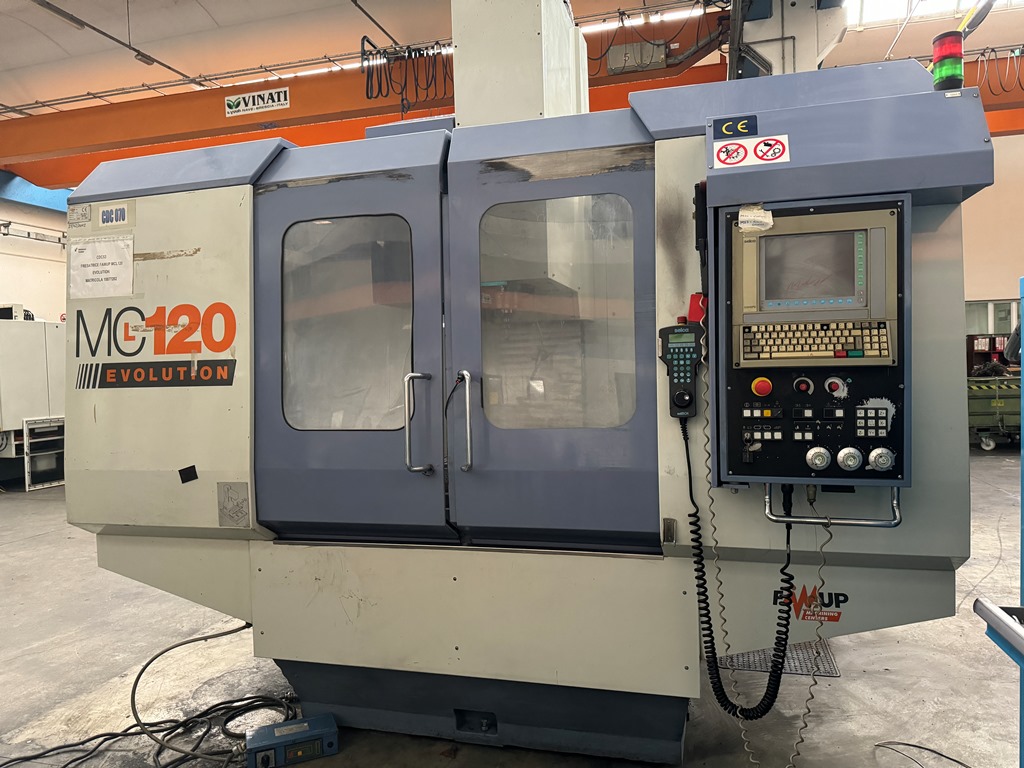

CENTER FAMUP MCL120E
Single pallet
machine center - vertical - Used Machines
FAMUP
09662
09662

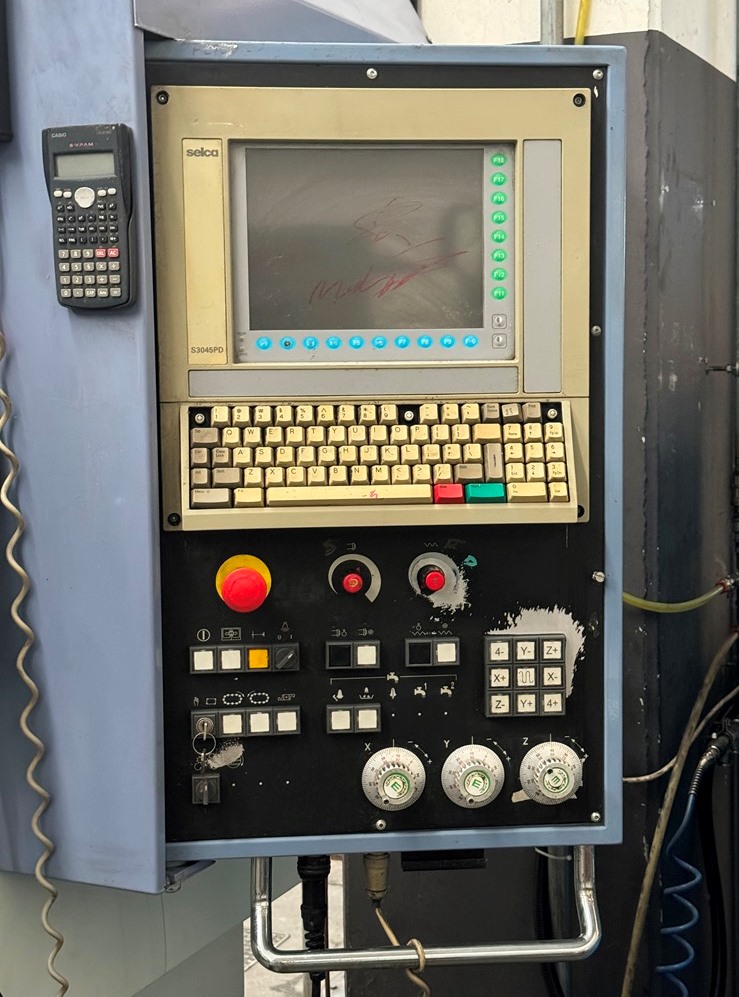

Selca 3045 CNC
TRAVELS:
X axis 1200 mm
Y axis 600 mm
Z axis 600 mm

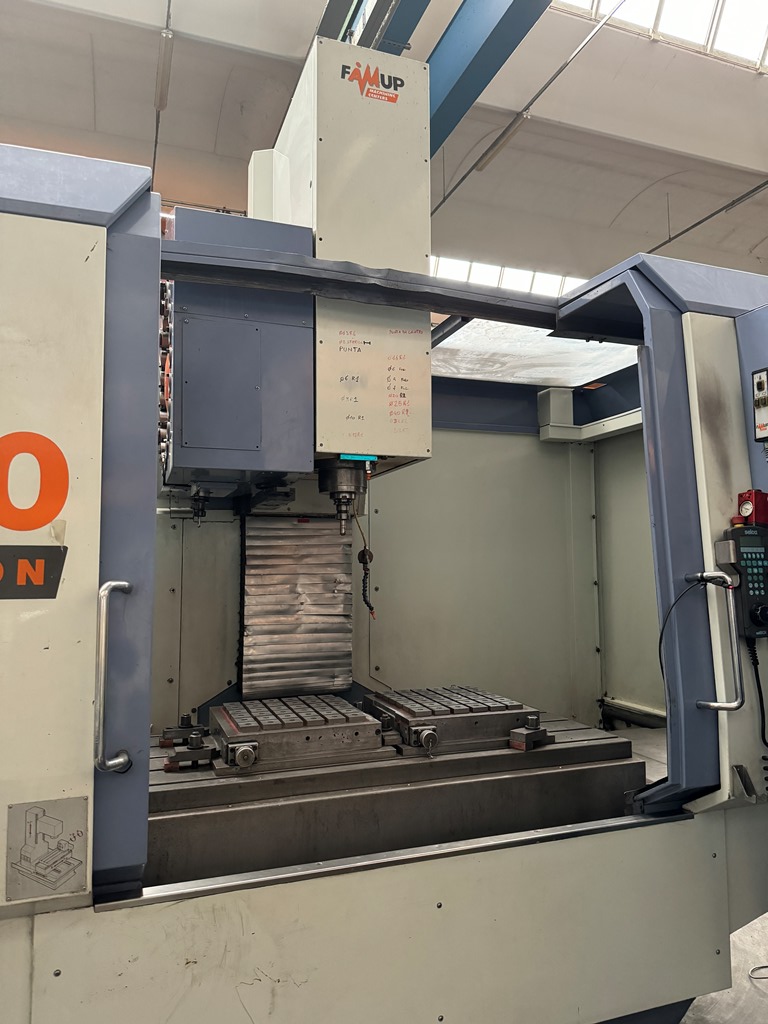

TABLE:
Table size 1380x620 mm
T-slots 5
T-slots widht mm 18
T-slots distance mm 125
Max table load 800 kg
SPINDLE:
Spindle taper DIN69871 ISO 40
Spindle speed 50-10.000 rpm
Motor power (30 min/S1) 18.5/15 Kw
TOOL CHANGE:
Automatic with 24 positions
Max tool diameter mm 75
Max tool lwidth mm 50
Max tool lenght mm 280
Max tool weight 6 kg
GENERAL DATA:
Overall dimensions 4290x3810x3300H
Weight 6.500 kg
EQUIPPED WITH:
-Remote handwheel
-chip tank back side
-washing system with pump
-Tool coolant system
USED MACHINE
IMAGES:
