CENTER MIND MACH-T VMC 1400/A
Single pallet
machine center - vertical - Used Machines
VIDEOS:
MIND
09846
09846

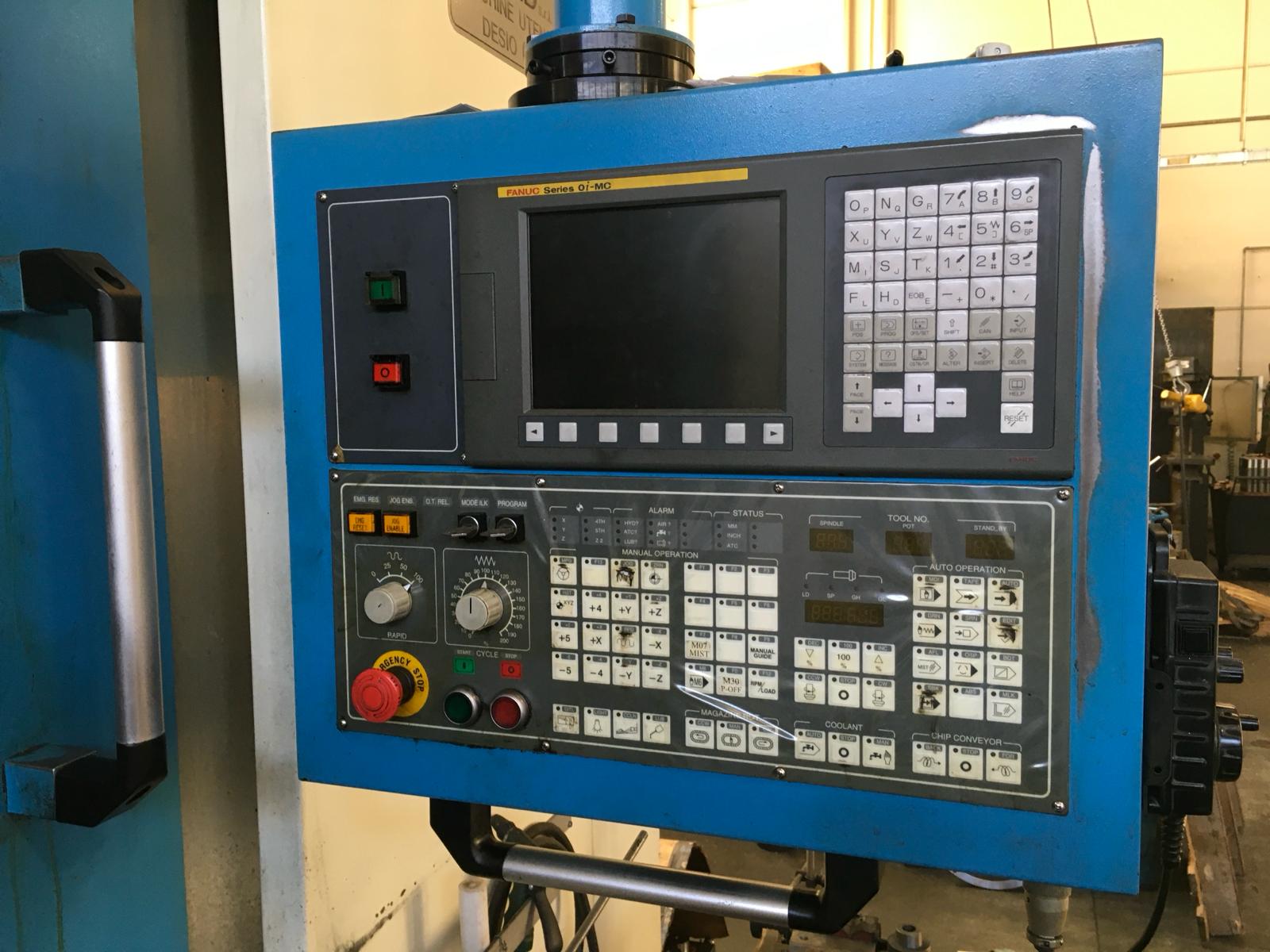

CNC FANUC 0i-MC

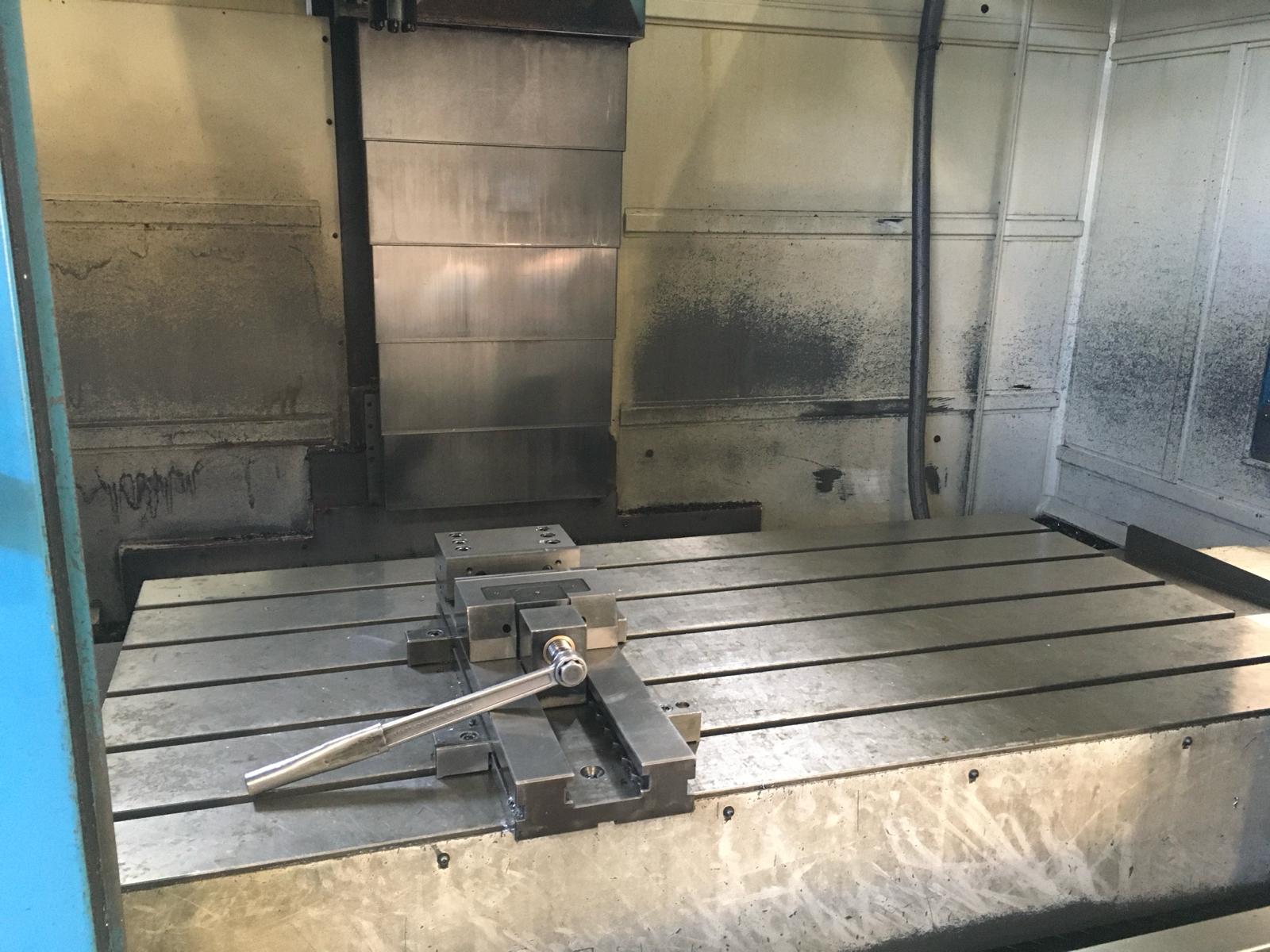

TABLE:
Table dimensiona mm 1700x850
Max load on table Kg 200
STROKES:
Longitudinal X axis stroke 1400 mm
Cross Y axis stroke 850 mm
Vertical Z axis stroke 850 mm
Distance spindle nose/table plane min/max mm 150/1000
Distance spindle center/column mm 925
SPINDLE:
Spindle nose BT 50
Rotation speed rpm 40-6000
Spindle motor power kW 11/15
TOOL CHANGE:
Automatic tool changer with 24 positions
Max tool diameter mm 115
Max tool weight Kg 11
Max tool lenght mm 300
MACHINE OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions mm 4150x2900x3500
Weight 14000 kg
EQUIPPED WITH:
-Chain chip conveyor
-High pressure through the spindle
USED MACHINE
YEAR 2006
IMAGES:
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
