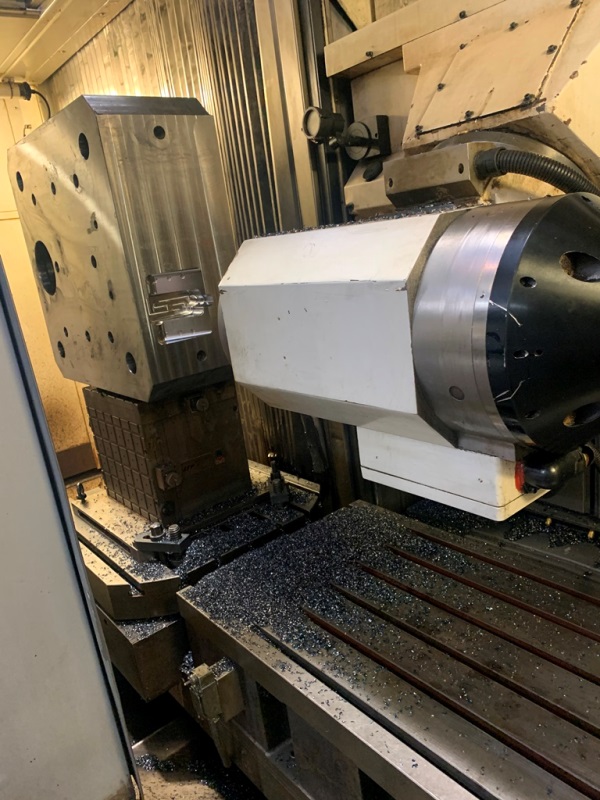

MILLING HURON MOD. EX-N 30
09865
5 AXIS TRAVELLING COLUMN
CNC SINUMERIK 840D
STROKE:
X-axis longitudinal stroke mm 2400
Y-axis cross stroke mm 700
Z-axis vertical stroke Z mm 600
FIXED TABLE:
Dimensions mm 1600x600
Load Kg 2400
ROTARY TABLE:
Dimensions mm 800x700
Load Kg 1200
SPINDLE:
Cone HSK A-63
Spindle speed rpm 100-14000
Spindle motor power kW 25
HEAD N:
Axis command positioning axis
A axis positioning (in the plane 45 degree) 2 positions H/V
B axis positioning (in the X-Z plane) +/- 90 degrees
B-axis measurement increment 0.001 degree
TOOL MAGAZINE:
Tool magazine 32 positions
Max tool diameter mm 100
Max tool weight Kg 10
Max tool lenght mm 300
EQUIPPED WITH:
-High pressure through spindle 15 bar
-Water + external air system
-Aspiration of oil mist and fumes
-Remote handwheel
-Chain type chip conveyor
USED MACHINE
