MOD. INSPECVISTA 3020A
X-axis travel mm 300
Y-axis travel mm 200
Z-axis travel mm 200
Type of swan neck structure
Structure composition granite+steel
Video system:
-1/3'' CCD camera (800x600 pixels)
-Laser pointer for quick identification of the measurement area
Optical system options:
-Motorized with standard zoom lenses, magnification factor 1:6X
-Coaxial zoom lenses, magnification factor 1:8.3X
-Field of view 6x5mm/1.25x1.00 mm
Illumination system:
-Episcopic 2 rings, 4 dials, 48 LED controlled via software and LED diascopic with green filter
-Coaxial light
Resolution of optical lines with resolution 0.5 um
MPE:
-E1=2+L/75um
-E2=3+L/75um
Max piece weight Kg 25
Power supply 95-265 V 50/60Hz

USED MACHINE
YEAR 2019

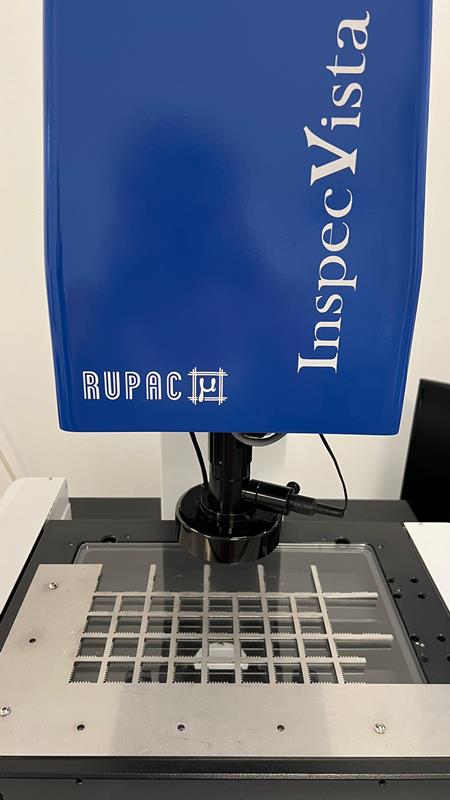

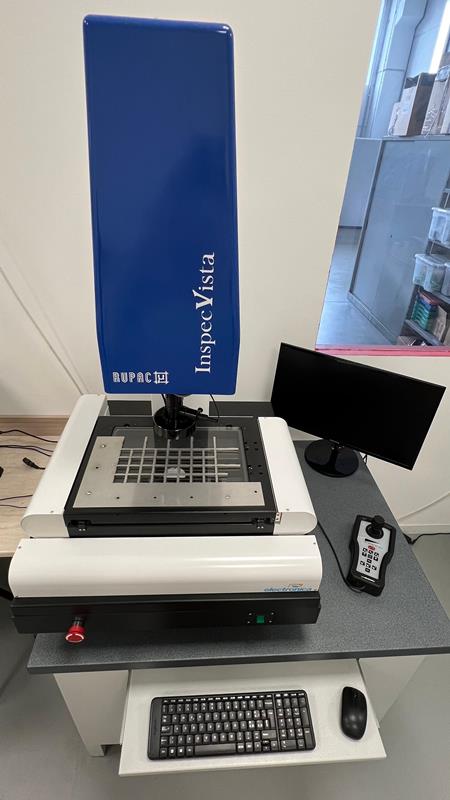

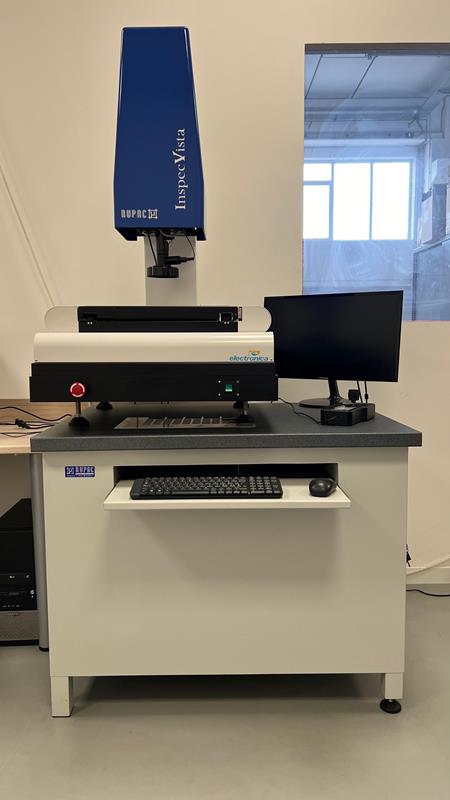

IMAGES:
