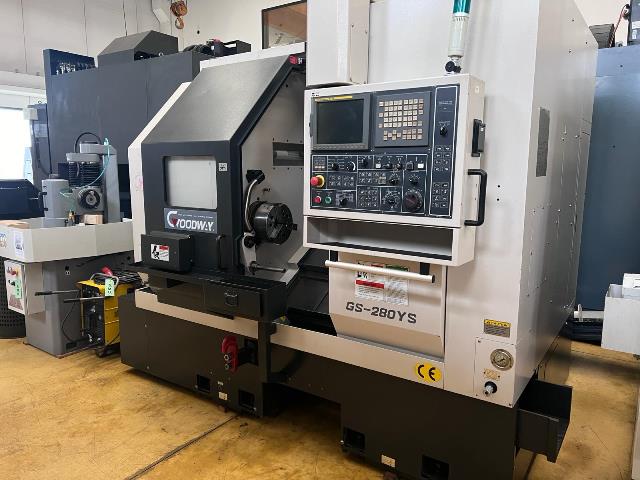

LATHE GOODWAY MOD. GS-280 YS
With live tools
09741
LIVE TOOLS
AXIS C, AXIS Y
SUB-SPINDLE

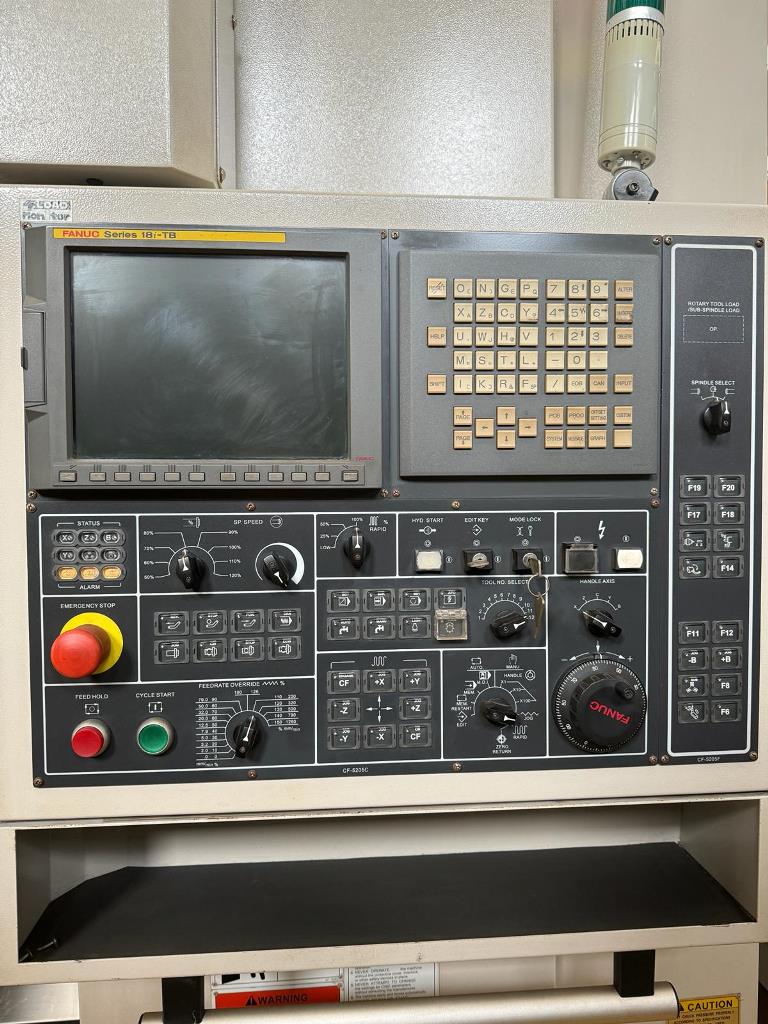

CNC FANUC 18i-TB
CAPACITY:
Max swing diameter 470 mm
Max turning diameter 400 mm
Max turning length 500 mm
Bar passaging 75 mm
STROKES:
X axis 270 mm
Z axis 630 mm
Y axis 120(+65/-55) mm
B axis 430 mm

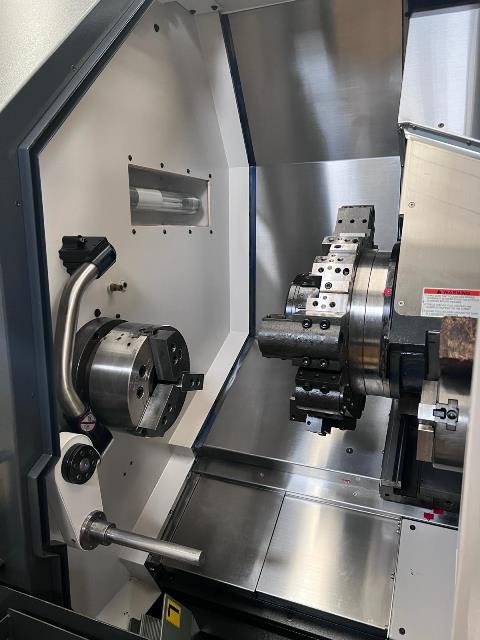

SPINDLE:
Spindle nose ASA2-8
Spindle rotation speed rpm 35-3500
SPindle bore mm 90
Minimum c-axis indexing angle 0,001 degrees
Spindle motor power kW 15/11
SUB-SPINDLE:
Nose A2-5''
Rotation speed rpm 60-6000
Bore mm 46
Minimum c-axis indexing angle 0,001 degrees
Bar passaging 38 mm
Spindle motor power kW 7,5/5,5

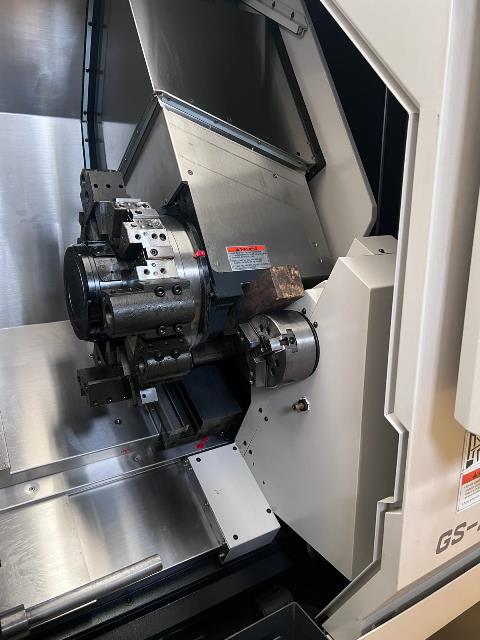

TURRET:
Turret with 12 live tools positions
VARIUOS:
Installed power KVA 42
Machine height mm 2260
Installation area mm 2670x1920
Machine weight Kg 5600
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
