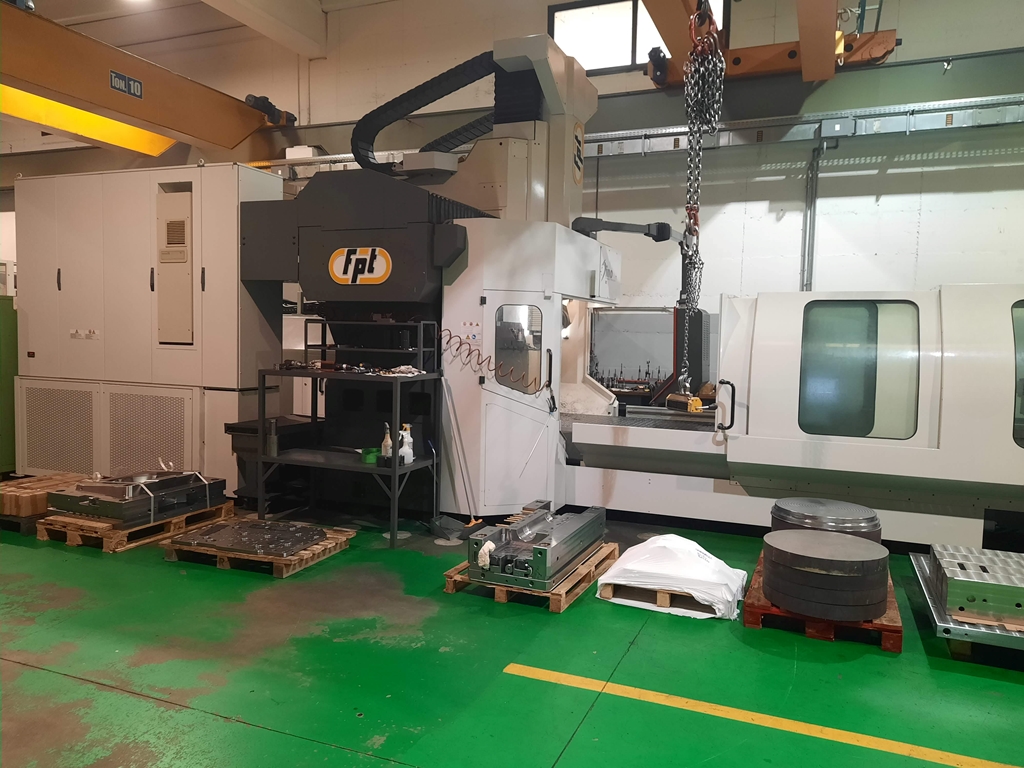

MILLING PORTAL/GANTRY FPT DINO
milling gantry/portal - Used Machines
VIDEOS:
FPT
09899
09899

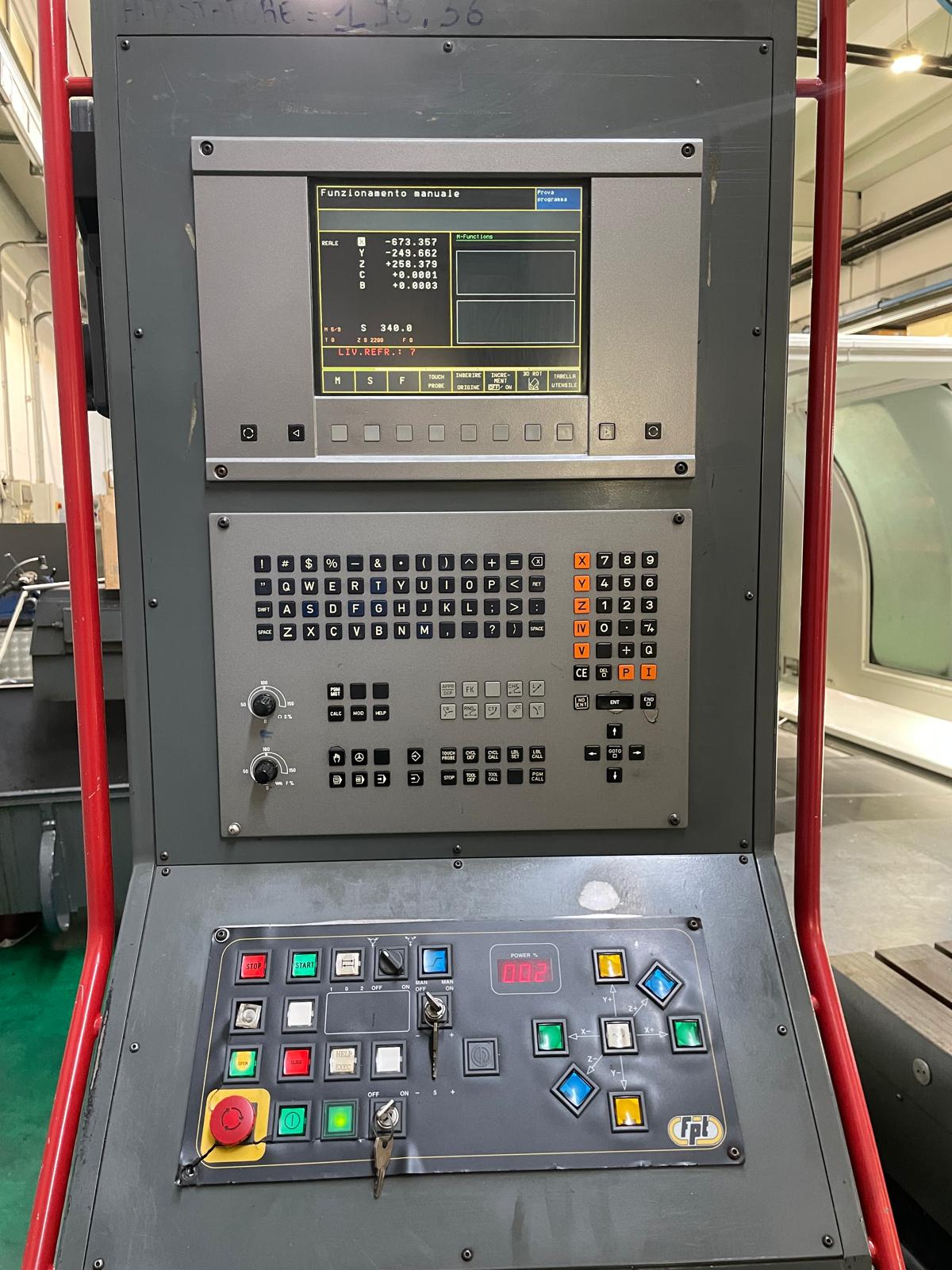

CNC HEIDENHAIN 426
Table dimensions mm 3000x1200
Table capacity kg 6000
Longitudinal X-axis stroke mm 2800
Cross Y-axis stroke mm 1600
Vertical Z-axis stroke mm 800 mm
Rapid feeds linear axes X/Y/Z m/min 35
Spindle power kW 18
Spindle speed rpm 18000
Tool magazine 40 positions
Tool attachment HSK A63
Total installed power kW 68,7
EQUIPPED WITH:
-Roller guides
-High pressure through spindle 20 bar

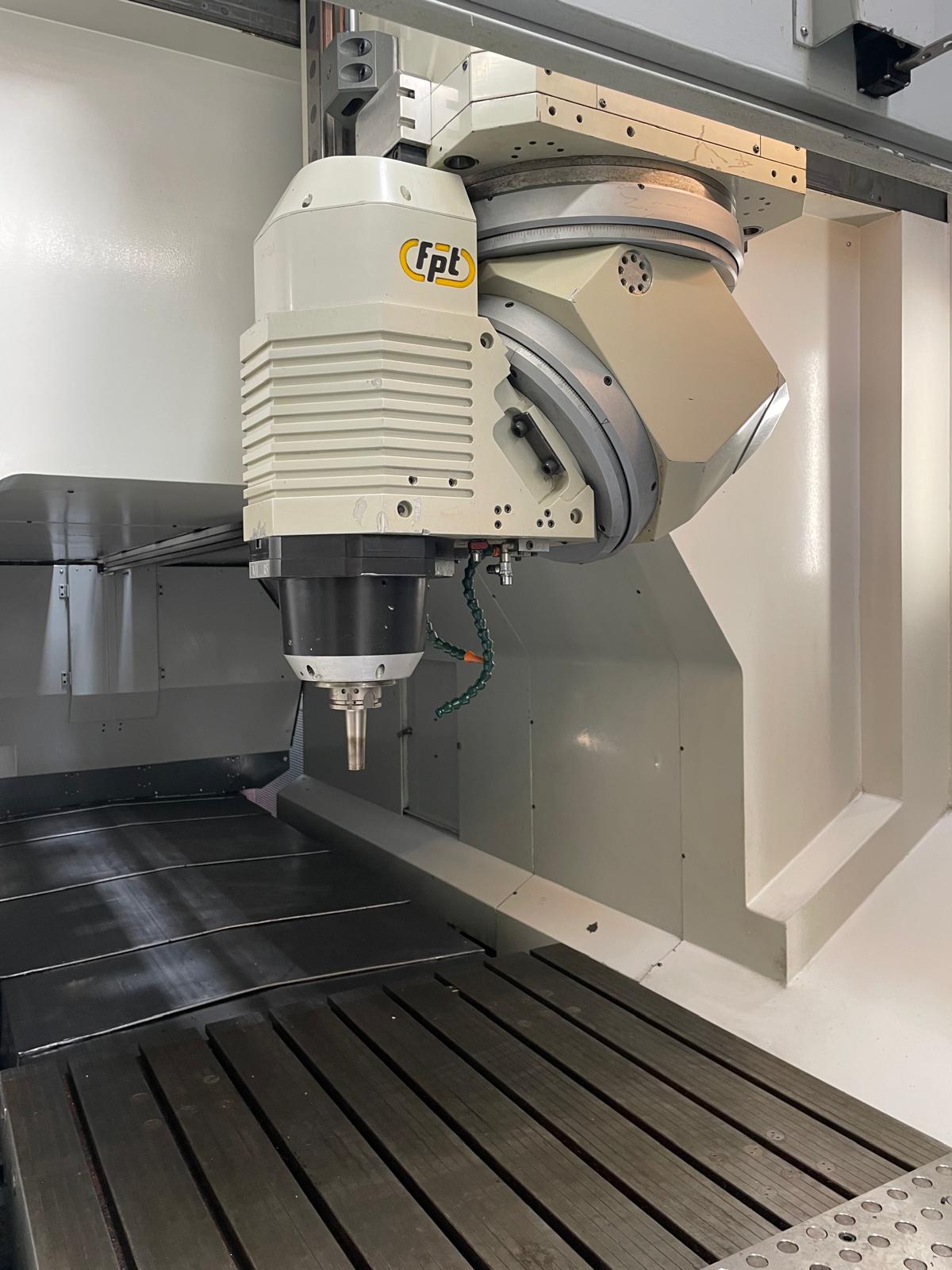

-Automatic bi-rotary head 5-axis continuous

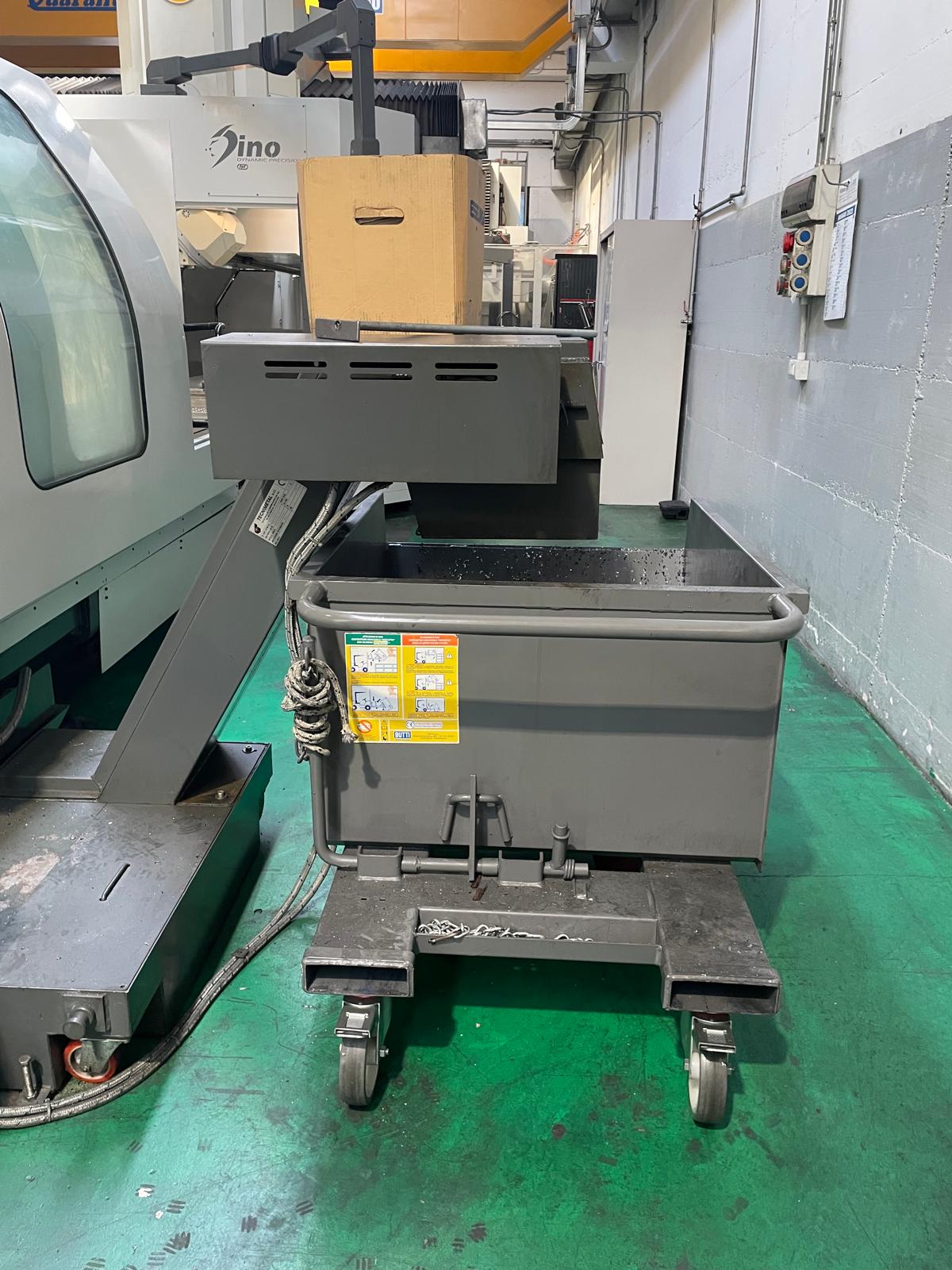

-Chip conveyor
USED MACHINE
IMAGES:
VIDEOS:
