VERTICAL LATHE RADAR MOD- RAL-20M
09902
C AXIS and LIVE TOOLS

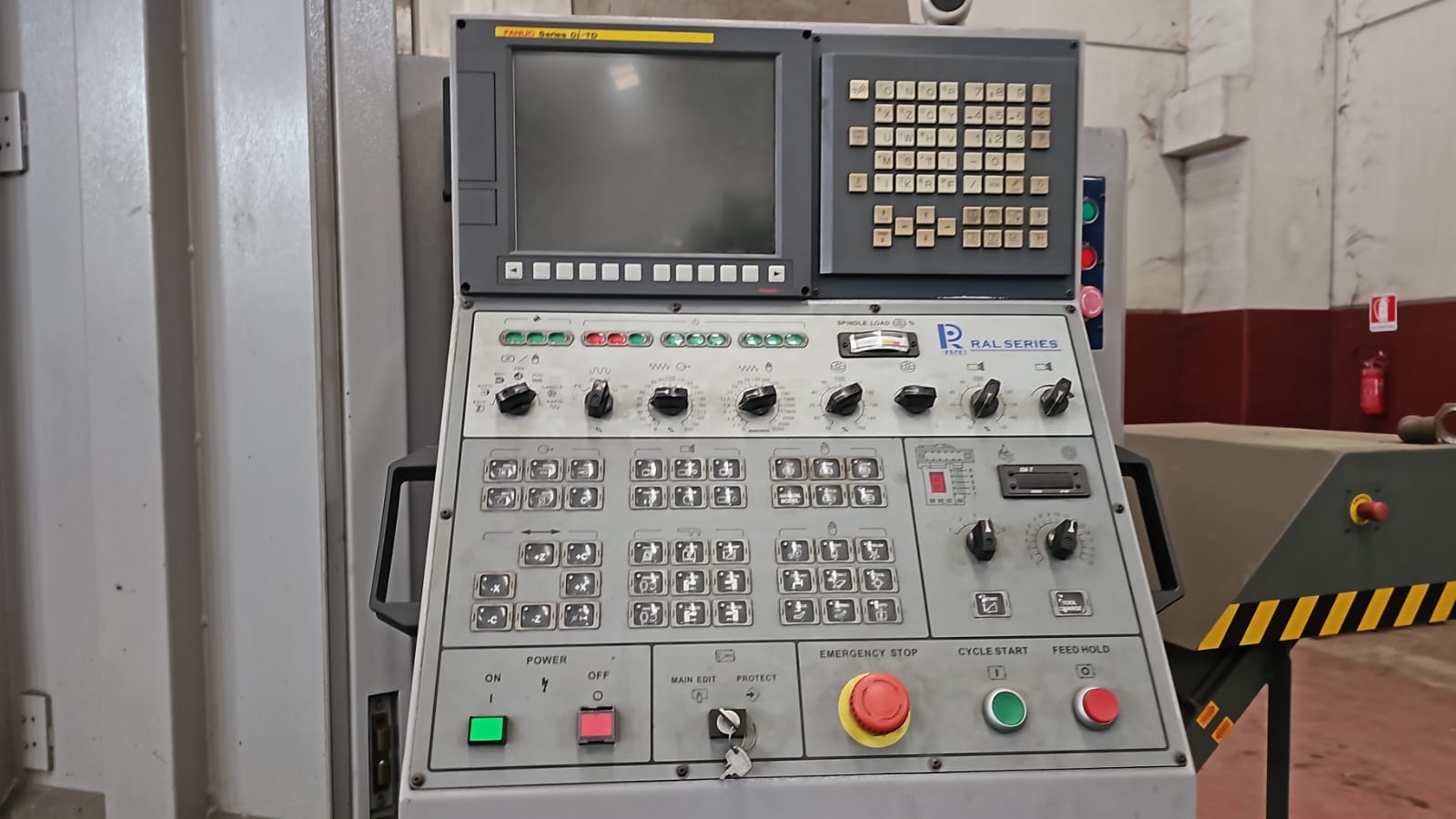

CNC FANUC Oi-TD
CAPACITY:

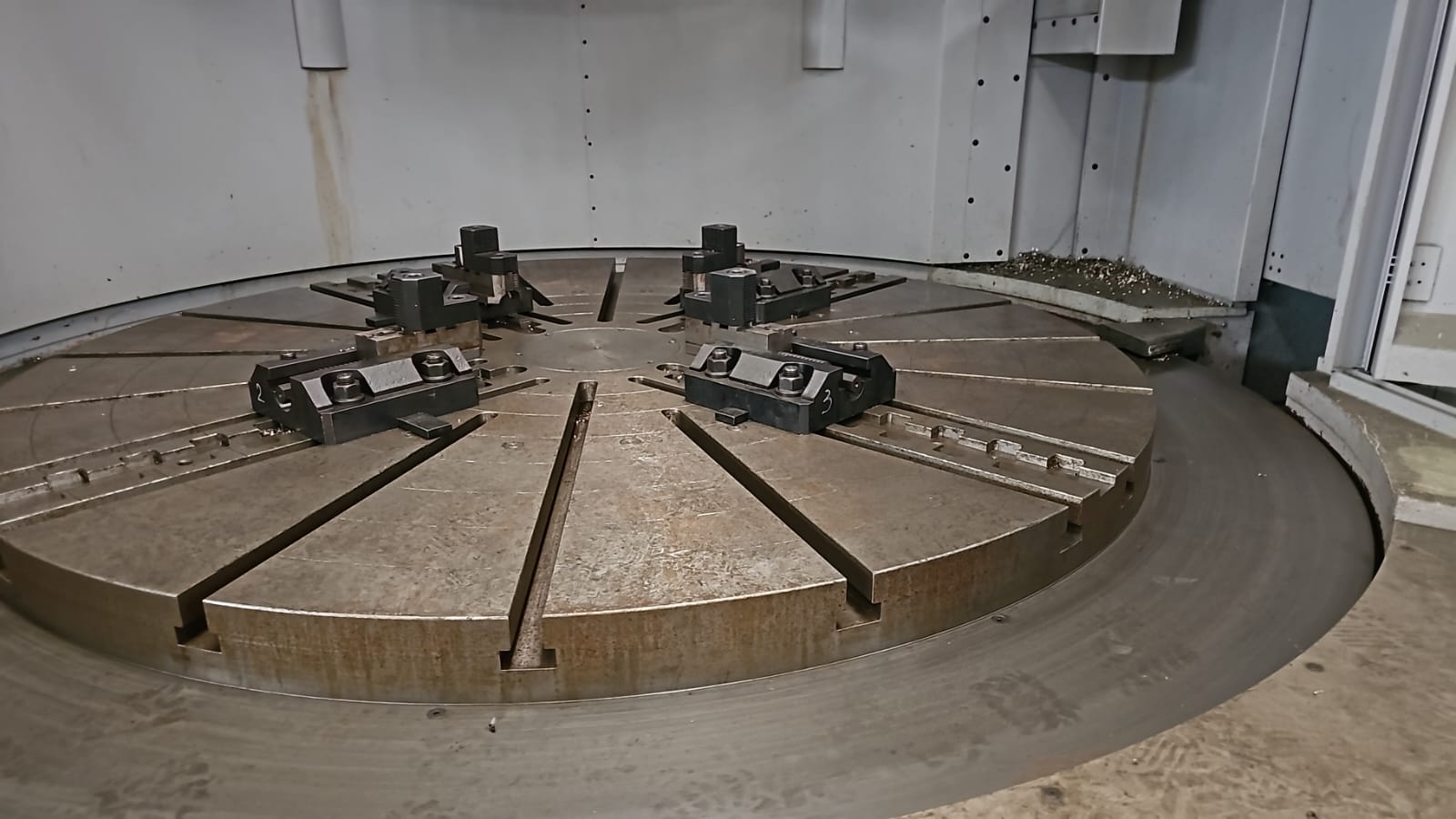

Table diameter mm 2000
Max swing diameter mm 2500
Max turning diameter mm 2400
Distance from RAM to table mm 1075-1875
Max turning height mm 1600
Max workpiece weight Kg 13,000

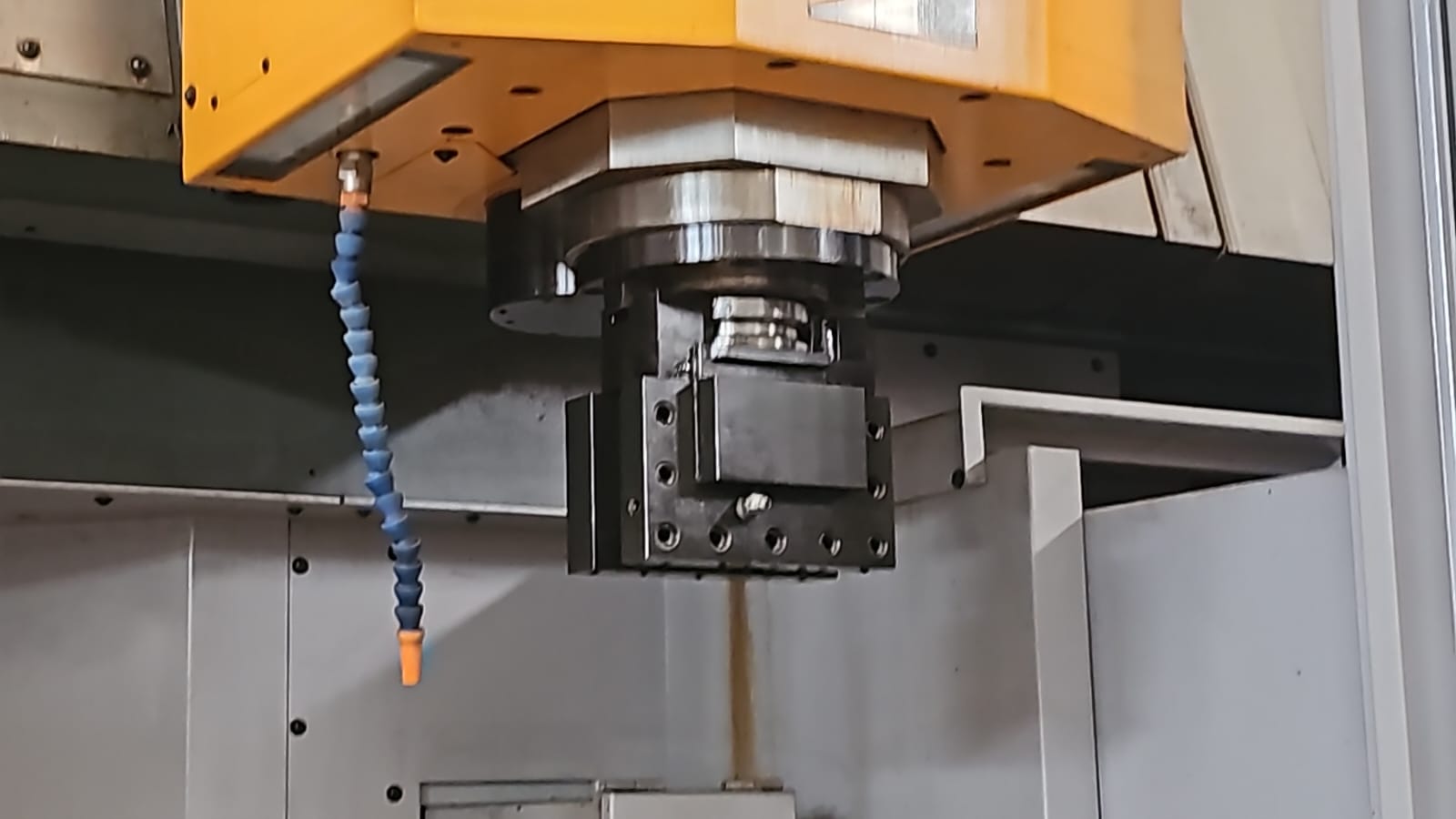

RAM size mm 240x270
SPINDLE:
Spindle speed (2 speed) rpm 1- 50;1-200
Max Torque table Nm 33.770
Spindle motor power kW AC 37/45
STROKES:
X-axis stroke mm -250/+1380
Z-axis stroke mm 1000
AUTOMATIC TOOL CHANGE:
Tool change 18 positions (9 motorized)
Max tool length mm 400
Max tool weight kg 50
Too taper BT50
Spindle speed rpm 50-2250
MACHINE DIMENSIONS AND WEIGHT:
Occupied space mm 7800x5100
Machine height mm 5930
Machine weight kg 42500
EQUIPPED WITH:
-High pressure pump 10 bar
-Chip conveyor
USED MACHINE
YEAR 2016
IMAGES:
