CENTER HECKERT CWK630
Double pallet
machine center - horizontal - Used Machines
HECKERT
New03431
New03431
HORIZONTAL MACHINE CENTER
TECHNICAL CHARACTERISTIC:
6000 RPM
Rapid speed: 6000 mm/min
Capacity table: 1200 Kg
Acceleration: G. 0,15
Table size: 630 x 630 mm.
Diameter max of the cube: 1000 mm.
Axis X: mm. 900
Axis Y: mm. 740 (Y min. mm. 20; Y max mm. 760)
Axis Z: mm. 835 (Z min. mm. 170; Z max mm. 1005)
Diameter spindle: mm. 250
Spindle type: ISO 50 DIN69871A
Number tools: 80
Diameter max tools: mm. 140-300
Lenght max tools: mm. 450
Weight max tools: Kg. 25
Internal adduction high pressure

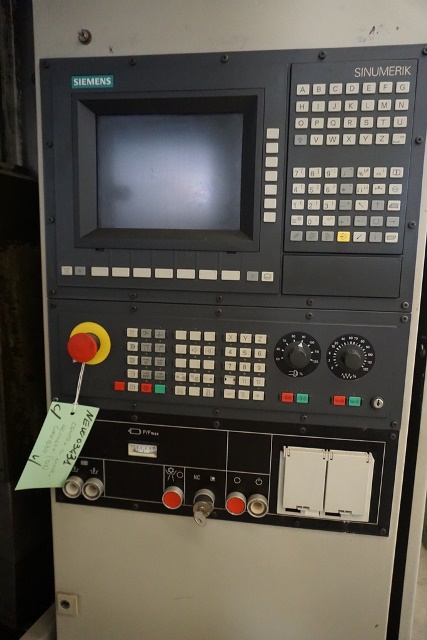

CNC SIEMENS SINUMERIK 840 C
INDEX TABLE
used machine
IMAGES:
