PRESS ROVETTA 400TON
Eccentric double column
press - Used Machines
.png)
ROVETTA
09942
09942
MECHANICAL DOUBLE COLUMN PRESSES
S2-400-1600 × 1220 / E
Nominal force: kN 4000
Slide stroke: 300 mm
Strokes per min .: N ° 18
Worktop dimensions: 1600 x 1220 mm
Vertical light: 505 mm
Height adjustment of the slide: 200 mm
Total force at 5.4 bar: kN 400
Stroke: 150 mm
Dimensions (L x W x H): 3.400 x 2.900 x 5.800 mm
Approx.weight: 58.900 kg
USED MACHINE

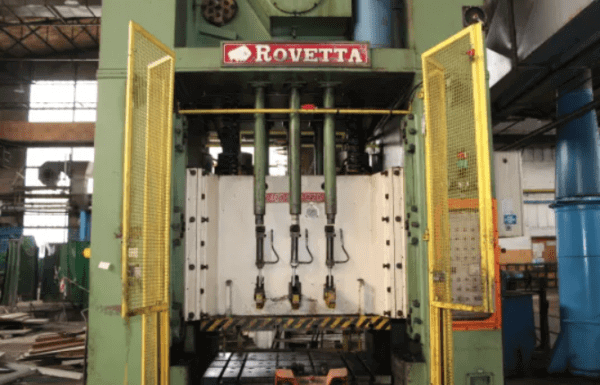

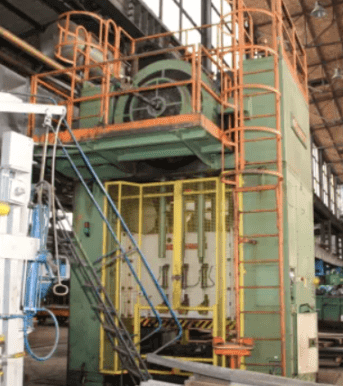

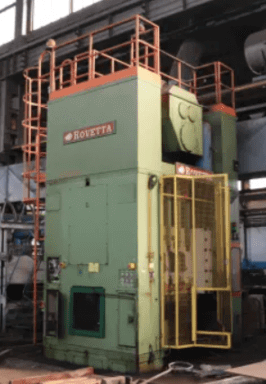

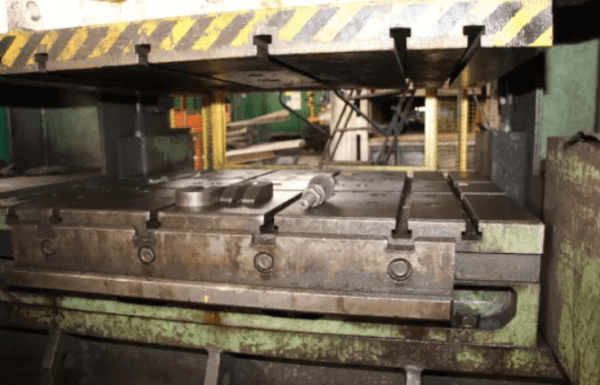

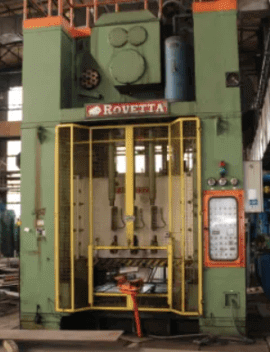

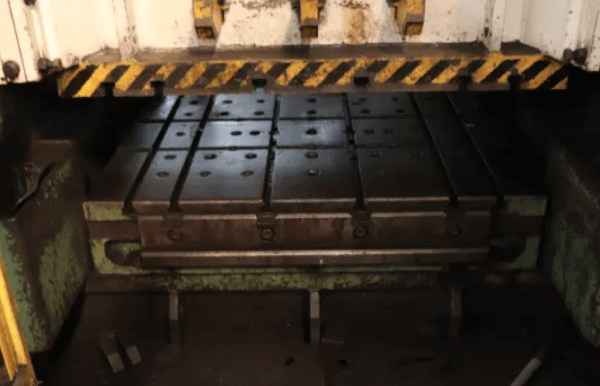

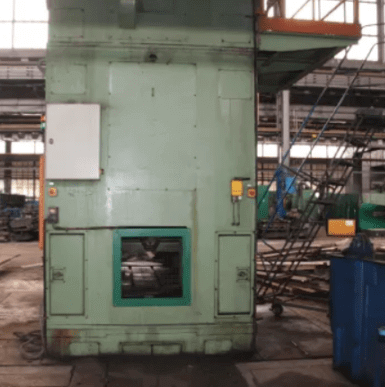

IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
