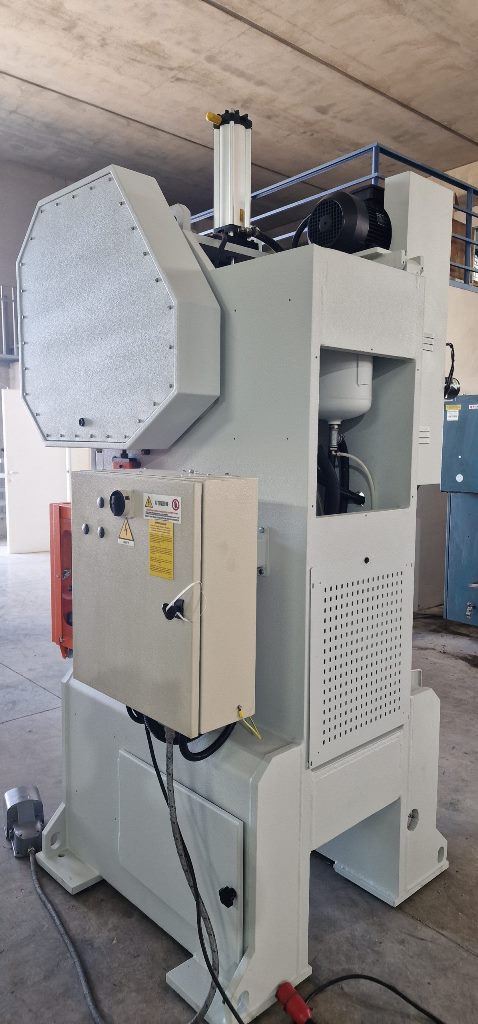

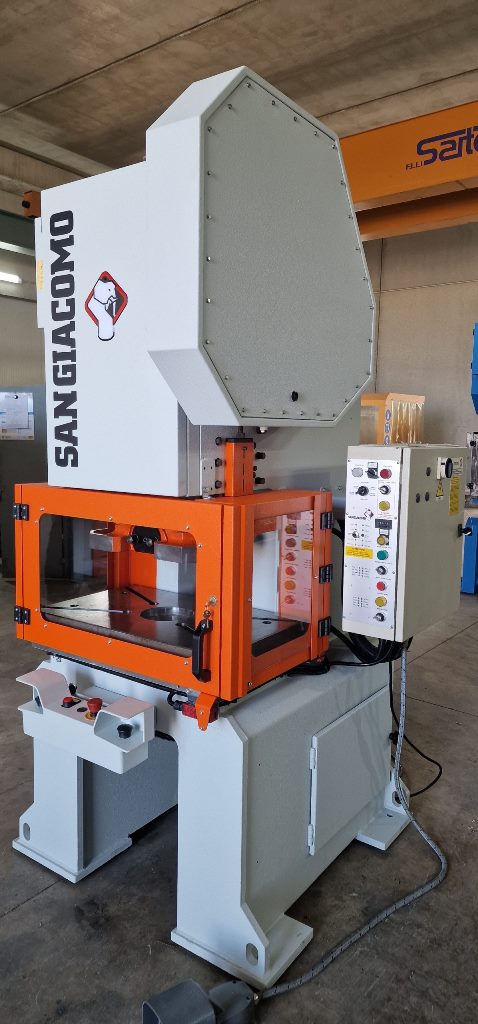

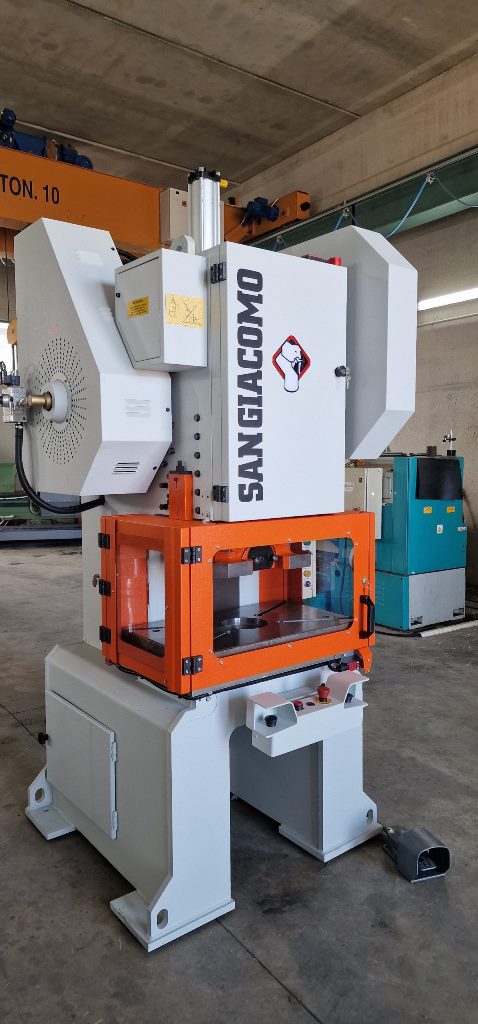

PRESS SANGIACOMO T50 R CE
Eccentric c- type
press - Used Machines
VIDEOS:
SANGIACOMO
09943
09943
C-FRAME PRESSES
Nominal force: 500 kN
Nominal stroke: 4.21 mm
Adjustable stroke: 12÷110 mm
Stop position: TDC
Ram adjustment: 70 mm
Stop time: 107 ms
Strokes per minute: 90
Maximum mould surface: 380x660 mm
Maximum closed mould height: 339 mm
Min. closed mould height: 290 mm
Upper mould mass: 60 kg
Flywheel revolutions per 1°: 447
Max. insertions at 1°: 40
Installed power: KW 3.05
Voltage: V400
Auxiliary voltage: V24
Operating air pressure: BAR 5.5÷6
Mass: Kg. 3.400
Hydraulic overload safety
Additional work plan
USED MACHINE
VIDEOS:
FILL OUT OUR FORM FOR MORE INFORMATION
