FANUC ROBODRILL T21 iFL
Single pallet
machine center - vertical - Used Machines
FANUC
09949
09949
VERTICAL MACHINE CENTER

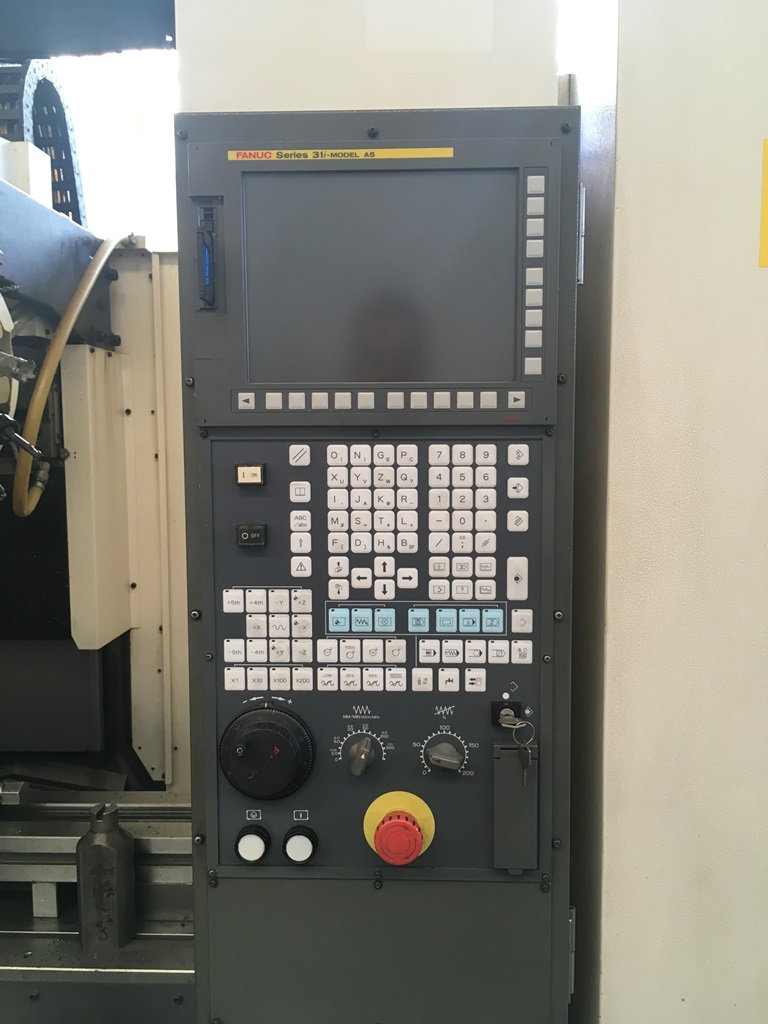

CNC FANUC 31I A5
Table dimensions mm 800x400
Strokes:
X mm 700
Y mm 400
Z mm 350
SPINDLE
Spindle motor 5.5 /3.7 Kw
Spindle nose attachment BT 30
Max spindle speed Rpm 10,000
ADVANCES
Rapid 54 m/min
working 30 m/min

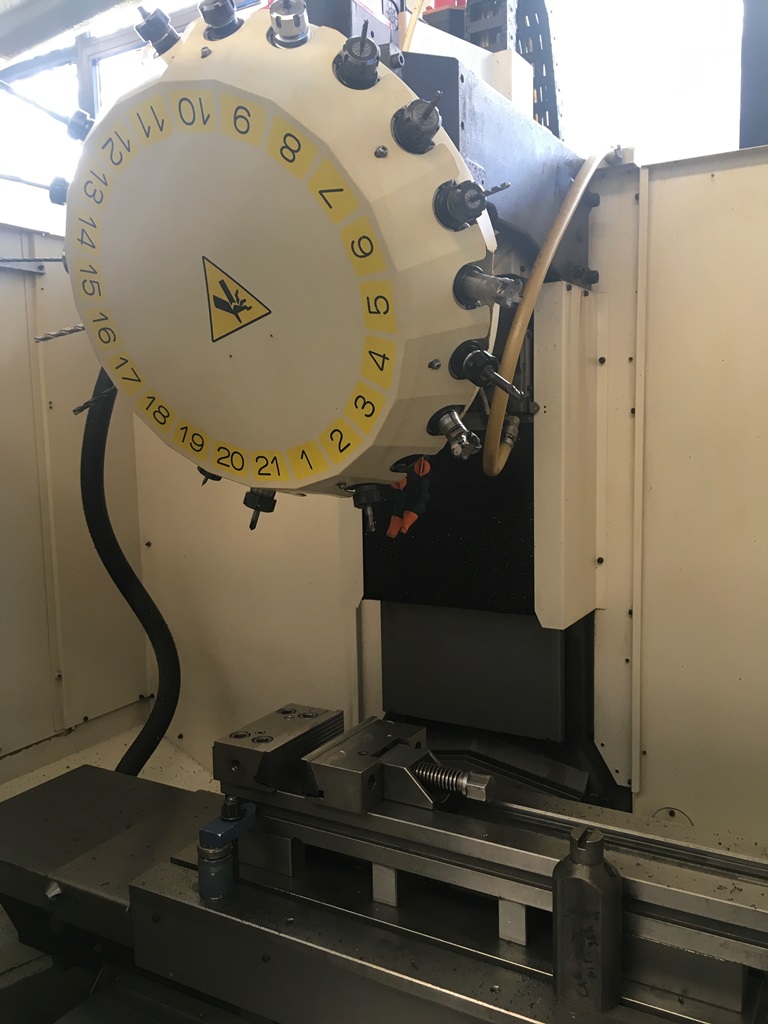

TOOL CHANGE
automatic 21 positions
Max. tool weight 3 kg
Max. tool length mm 200
Max. tool diameter mm 80
POWER SUPPLY
Three-phase voltage 10 KVA, 220 V, 50 Hz
DIMENSIONS
Weight kg 2200
USED MACHINE
YOM 2007
FILL OUT OUR FORM FOR MORE INFORMATION
