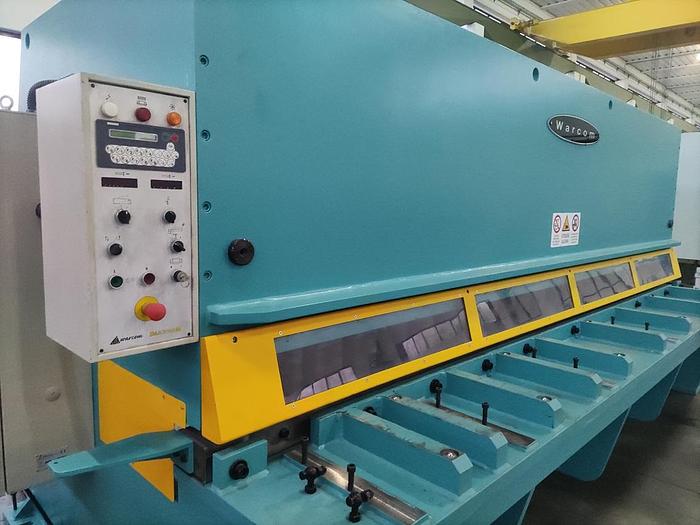

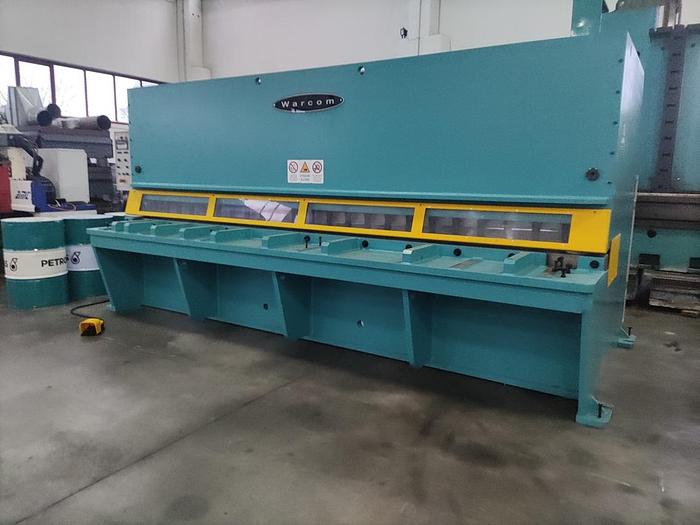

SHEARS WARCOM MAXIMA 40-08
Guillotines shear
sheet metal working - Used Machines
WARCOM
10015
10015
Cutting length: 4,050 mm
Maximum cutting capacity: 10 mm
Distance between uprights: 4,150 mm
Control unit: Thesi 310 positioning system
Throat depth: 500 mm
Cutting angle adjustment: 0°30' to 2°30'
Nominal angle: 2°
Backgauge stroke: 1,000 mm
Motor power: 15 kW
Weight: 14,000 kg
Approximate dimensions: 4,900 x 2,200 x 2,350 mm
EQUIPPED WITH:
Hydraulic sheet support with ball rollers on the slide
No. 2 front supports
No. 1 lateral squaring arm, 3,000 mm with tilting stop
Solid worktable with ball rollers
USED MACHINE
