MACHINE CENTER AKIRA SEIKI
Single pallet
10016
MOD. V 4 XP

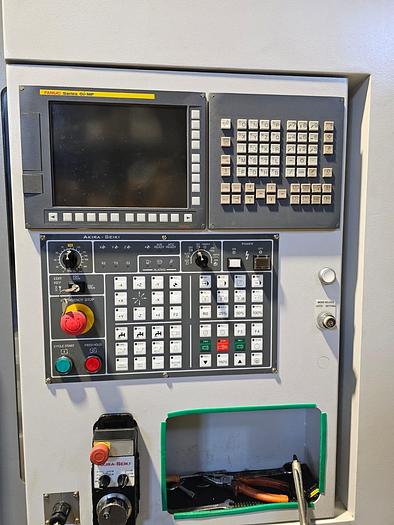

CNC Control: Fanuc 0i MF
TRAVELS:
X axis: 1,050 mm
Y axis: 540 mm
Z axis: 560 mm
TABLE:
Dimensions: 1,200 x 480 mm
T-slots: 5 (18 H8)
Maximum load capacity: 840 kg
SPINDLE:
Spindle-to-table distance (min./max.): 75 - 635 mm
Taper: ISO 40
Maximum speed: 11,000 rpm
Motor power: 15/18.5 kW
FEED RATES
Rapid feed on X-Y axes: 44,000 mm/min
Working feed: 1 - 12,000 mm/min
TOOL MAGAZINE
Capacity: 28 positions
Tool taper: ISO 40 DIN 69871
Maximum tool weight: 7 kg
Maximum tool diameter: 65 mm
Maximum tool length: 250 mm
Tool change time: 2.2 seconds
Bi-directional tool selection
DIMENSIONS AND POWER
Weight: 6,030 kg
Machine footprint: 3,800 x 2,240 x 2,600 mm
Power requirement: 30 kW
EQUIPPED WITH:
Work light
Full enclosure
USED MACHINE
YEAR 2019

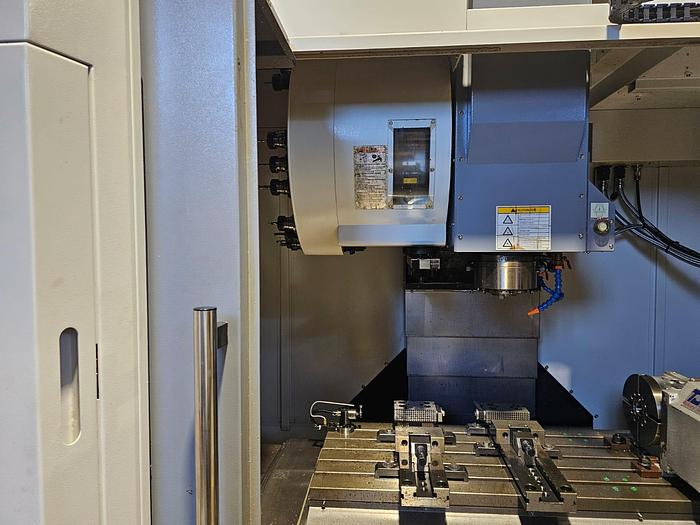

IMAGES:
