LATHE BIGLIA B501
2 axis
lathe cnc - Used Machines
BIGLIA
10017
10017

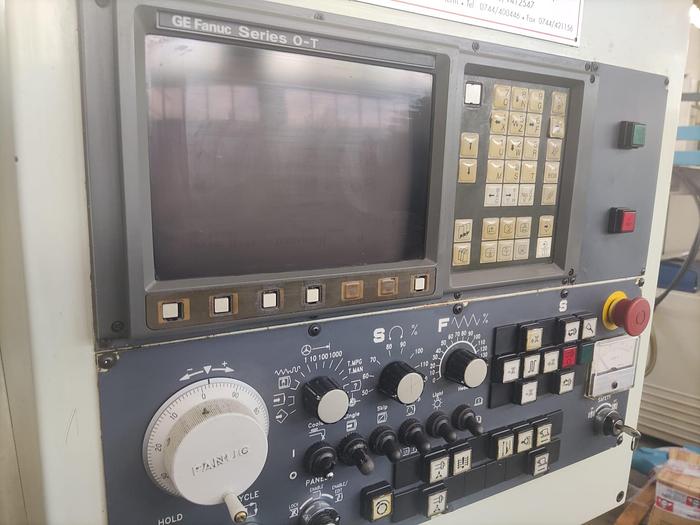

CNC Control: Fanuc GE 0 - T
SPECIFICATIONS
TURNING CAPACITY:
Maximum turning diameter: 520 mm
Maximum turning length: 500 mm
Bar turning diameter: 71 mm
TRAVELS:
X axis travel: 210 + 5 mm
Z axis travel: 500 + 10 mm
SPINDLE:
Spindle speed: 4,000 rpm
Spindle motor: 11-15 kW (50%)
Spindle mount: ASA 6
Spindle bore: 80 mm
Chuck diameter: 250 mm
TURRET AND TAILSTOCK:
Turret: 12 stations
Tailstock quill taper: MT 4
DIMENSIONS AND WEIGHT:
Machine dimensions: 3,500 x 1,670 x 1,650 mm
Weight: 4,600 kg
USED MACHINE

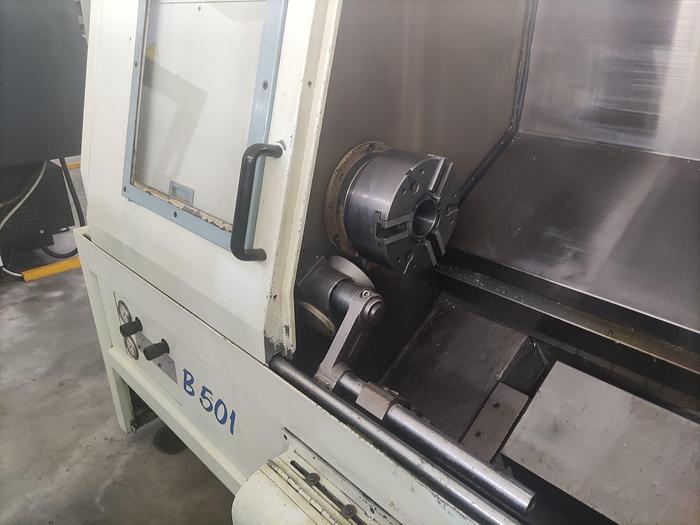

IMAGES:
