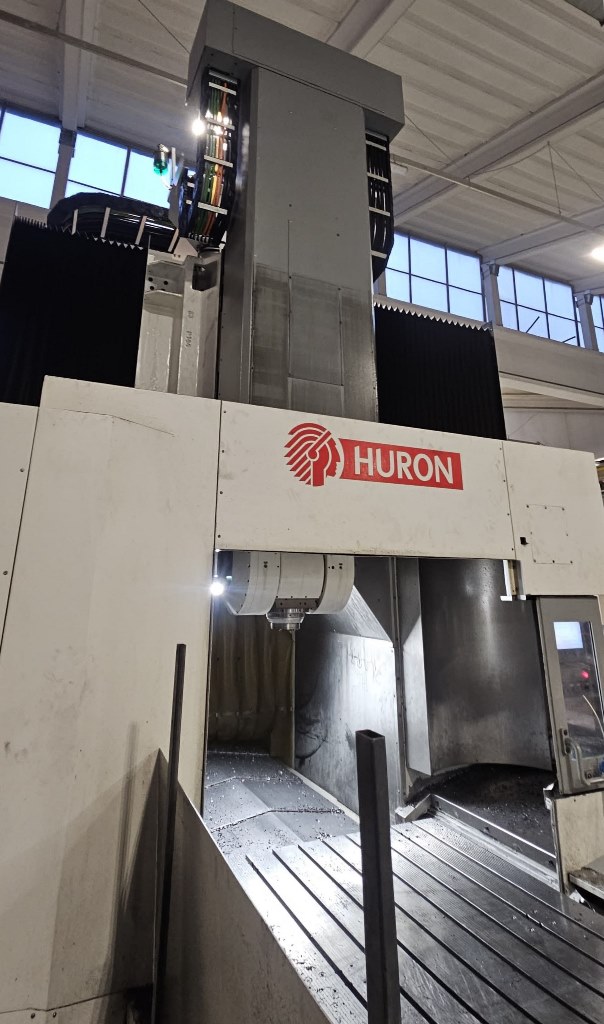

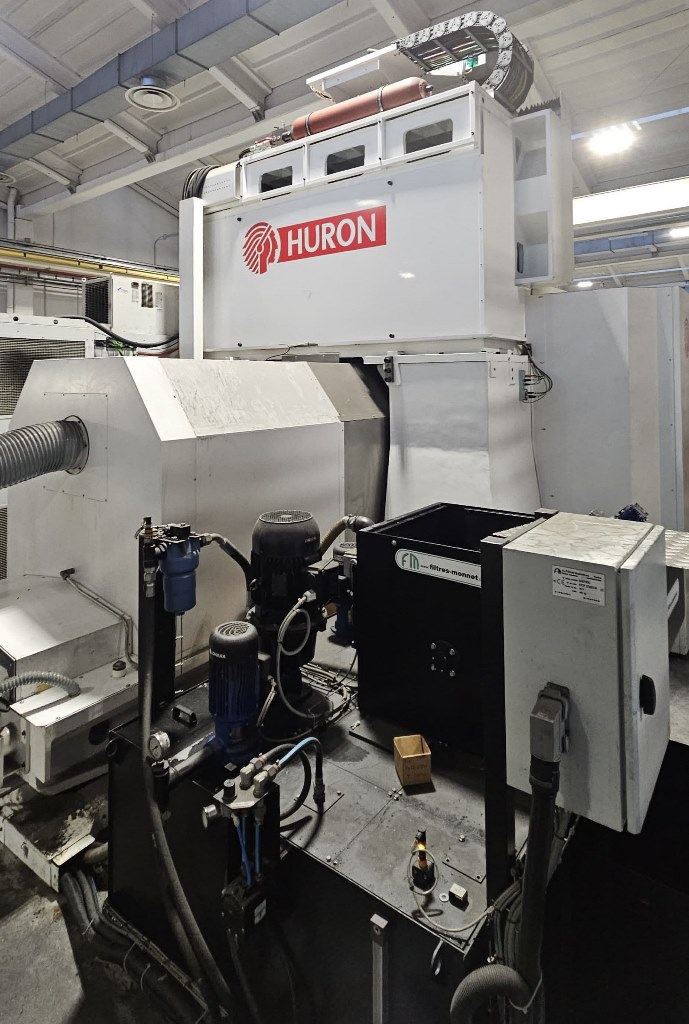

GANTRY MILLING MACHINE HURON KX 50L
.jpeg)
.jpeg)
.jpeg)
.jpeg)
10032
5 AXIS SIMULTANEOUS
CNC Control Heidenhain TNC 530
Travel X-Axis mm 3,000
Travel Y-Axis mm 1,700
Travel Z-Axis mm 900
Linear Axes Movements (X, Y, Z)
High Speed m/min 40
Acceleration per Axis m/s² 4
Vectorial Acceleration m/s² 7
Maximum Thrust daN 1,000
TABLE
Dimensions mm 3,300 x 1,250
Max Load Capacity kg 6,000
Number of T-Slots 9
Distance Between T-Slots mm 125
T-Slot Width mm 18 H7
Other T-Slot Widths mm 18 H12
Height Above Floor mm 790
Distance Spindle Nose to Table mm 955
Distance Between Columns mm 1,500
HEAD
2-Axis Fork-Type Head
C-Axis ±200°
Measurement Increment 0.001°
B-Axis ±105°
Measurement Increment 0.001°
SPINDLE
Taper HSK 63A
Rotational Speed rpm 20,000
Power S1/S6 - 40% kW 60/75

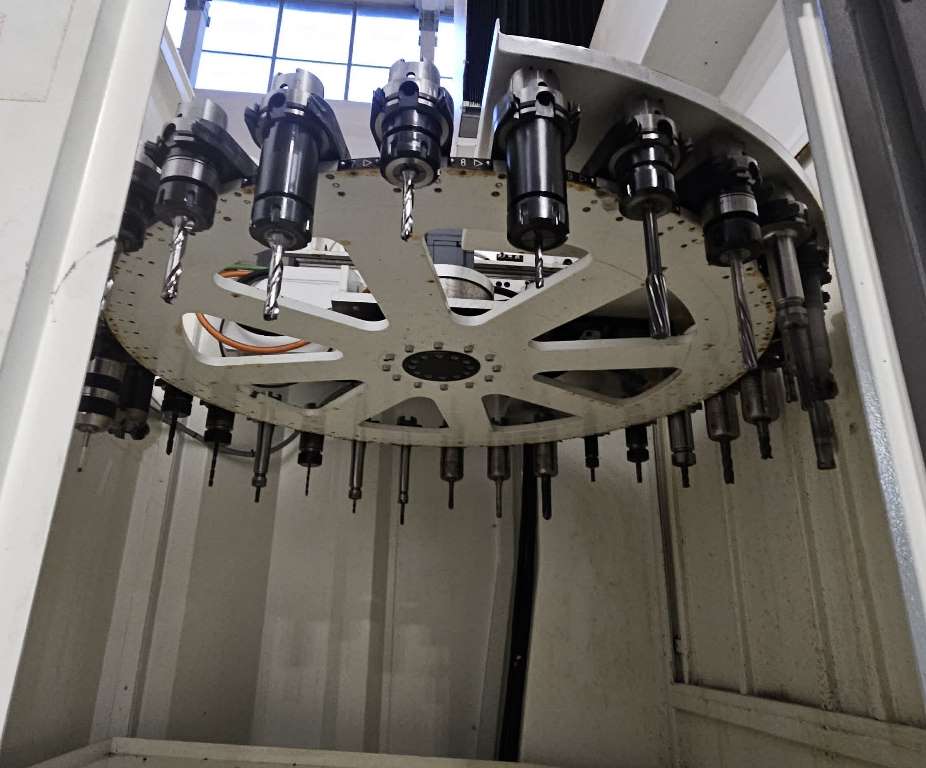

TOOL MAGAZINE
Positions 30
Max Tool Diameter mm 90
Max Tool Length mm 300
Tool Weight kg 8
Max Weight in Magazine kg 120
DIMENSIONS AND WEIGHT
Machine Dimensions mm 4,700 x 9,740 x 5,030
Approx. Machine Weight kg 30,000
EQUIPPED WITH:
Workpiece Probe
Tool Probe
Linear Guides with Roller Recirculation Carriages
Low-Pressure Cooling. bar 3
Centralized Automatic Lubrication for Ball Screws and Slide Carriages
Absolute Linear Measurement via Linear Scale. Resolution mm 0.001
Rotary Axis Measurement via Circular Encoder. Resolution 0.001°
USED MACHINE
YEAR 2019
IMAGES:
