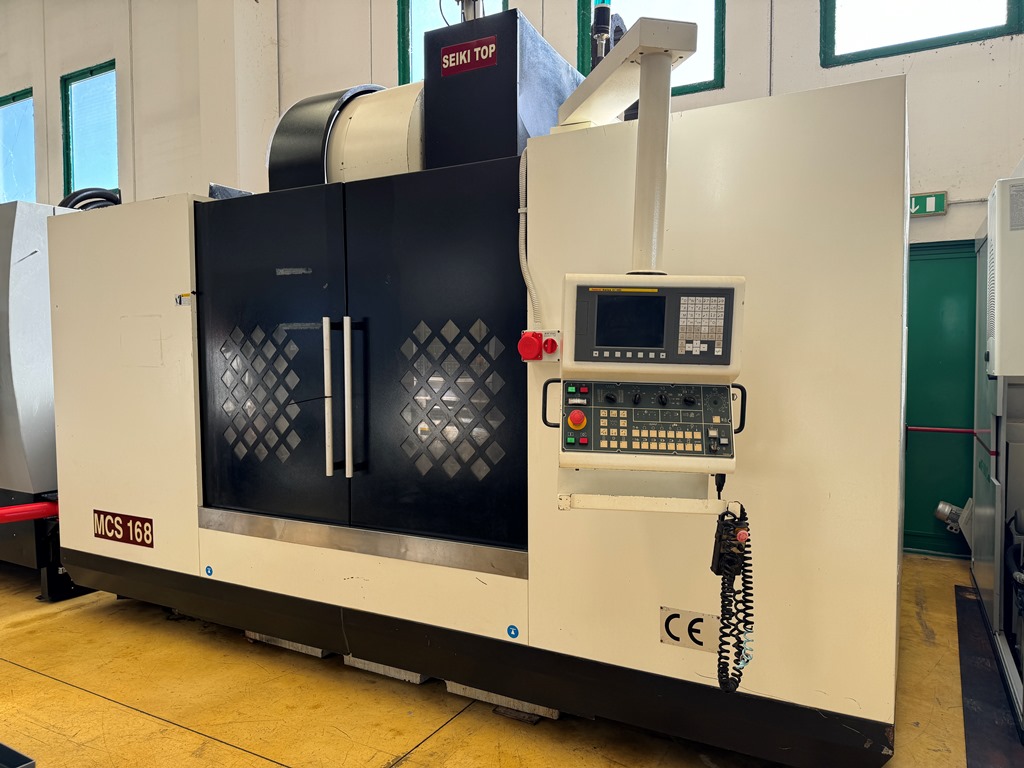

CENTER SEIKI TOP MCS 168
Single pallet
09734
GUIDE PIANE
CNC Fanuc 0i-MD
WORKING AREA:
Longitudinal stroke axis X mm 1600
Longitudinal stroke axis Y mm 815
Longitudinal stroke axis Z mm 815
Distance between spinle nose/table mm 1035

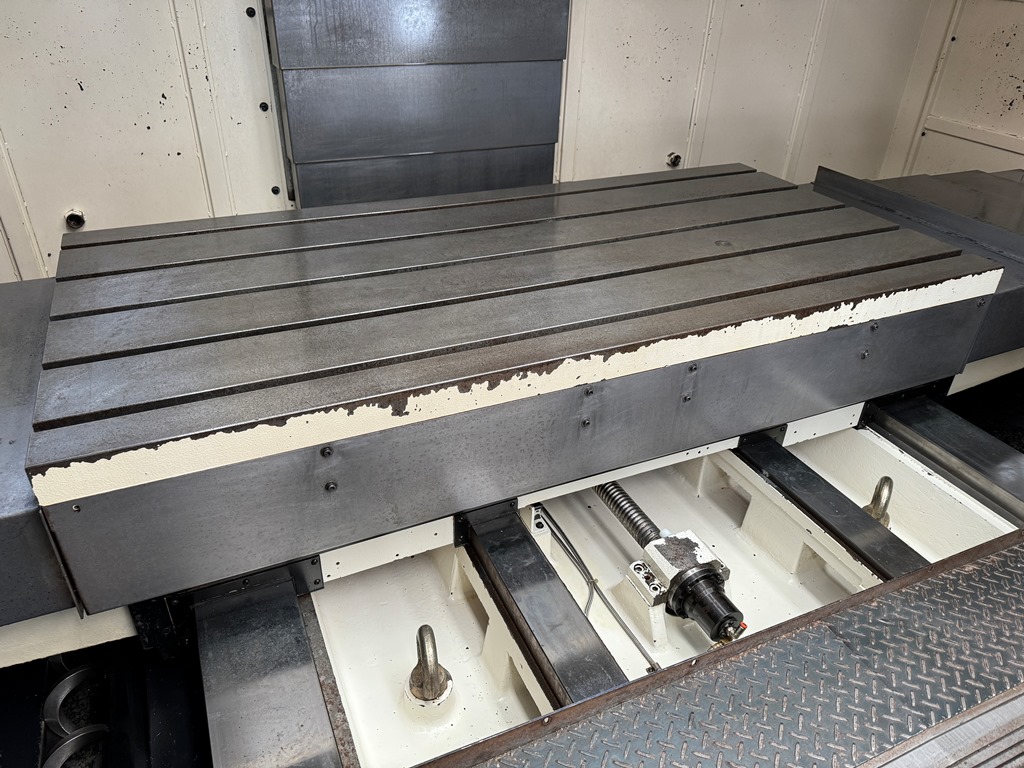

Table surface mm 1700x810
Max load on table kg 2000
N.5 T-slots
T-slots dimensions mm 22
T-slots center distance mm 160

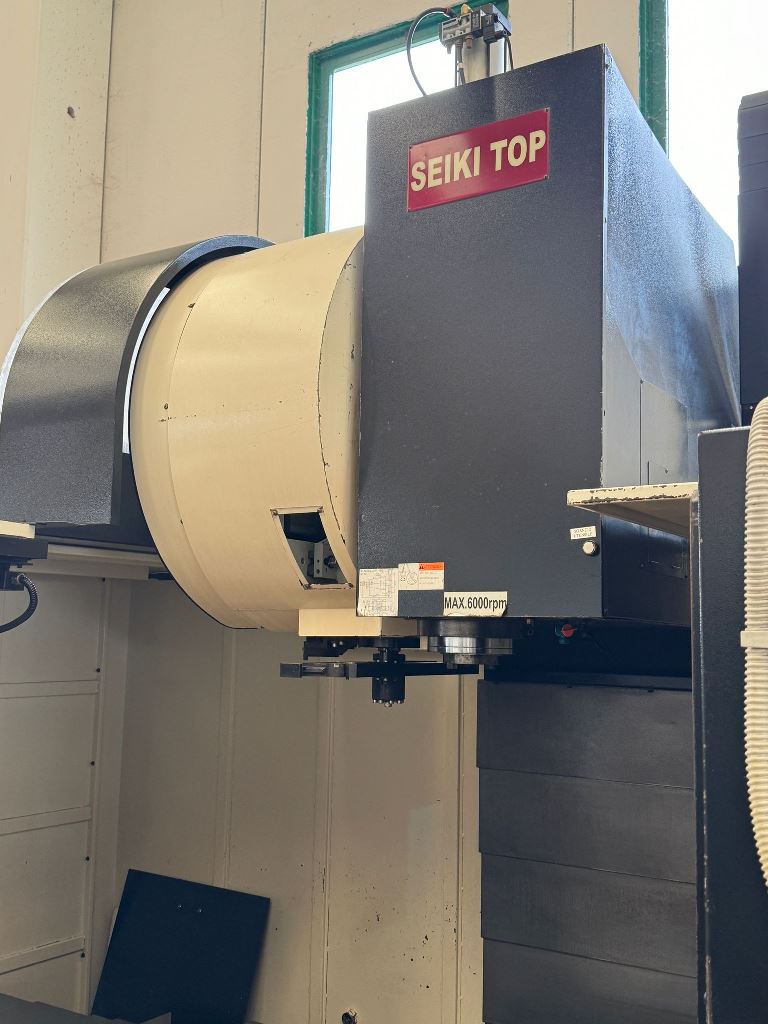

SPINDLE:
Max spindle speed rpm 30:6000
Spindle nose ISO 50
Spindle motor power 11 kW (15 HP)
AUTOMATIC TOOL CHANGE:
Tool change 24 positions
Tool holder BT 50
Max tool diameter mm 90
Max tool length mm 300
Max tool weight kg 8
Tool selection Bi-direction
OVERALL DIMENSIONS AND WEIGHT:
Overall dimensions mm 4170x3450x3250
Machine weight kg 14.000
EQUIPPED WITH:
-Range gearbox ZF 2 speeds
-High pressure through-spindle 20 bar, tank 400 lt.
-Chain chip conveyor
-Centralized automatic lubrication system
-Work area light
-3 color work lamp
USED MACHINE
