CENTER PARPAS P15A
Single pallet
machine center - vertical - Used Machines
PARPAS
10045
10045

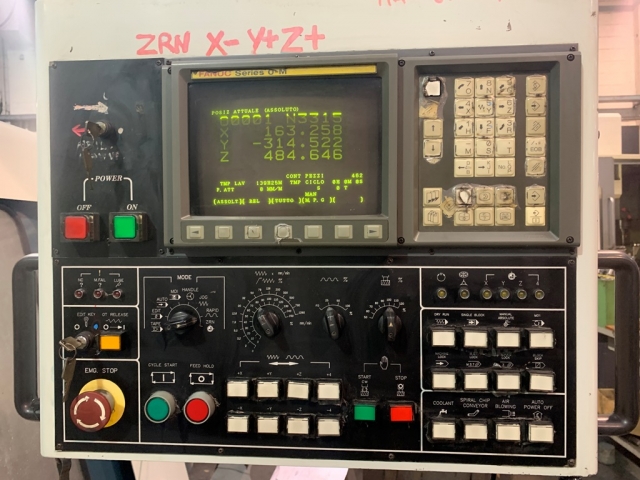

CNC FANUC O-M series
TABLE:
Table dimensions mm 1650x700
T-slots (width x n. x pitch) mm 22x5x150
Max table load Kg 1200
STROKES:
X-axis mm 1450
Y-axis mm 650
Z-axis mm 610
Distance between spindle nose and table surface mm 200-810
Distance between spindle center and column surface mm 720
SPINDLE:
Spindle nose ISO No.50
Spindle speed rpm 6000
Motor power (30 min.) kW 15
AUTOMATIC TOOL CHANGE:
Tool change 24 positions
Max tool weight Kg 15
Max tool diameter mm 110
Max tool length mm 300
Tool shank CAT-50 BT-50
OTHERS:
Machine weight Kg 13000
Floor space mm 3500x3100
USED MACHINE

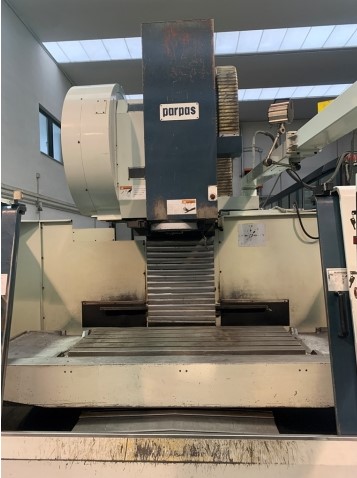

IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
