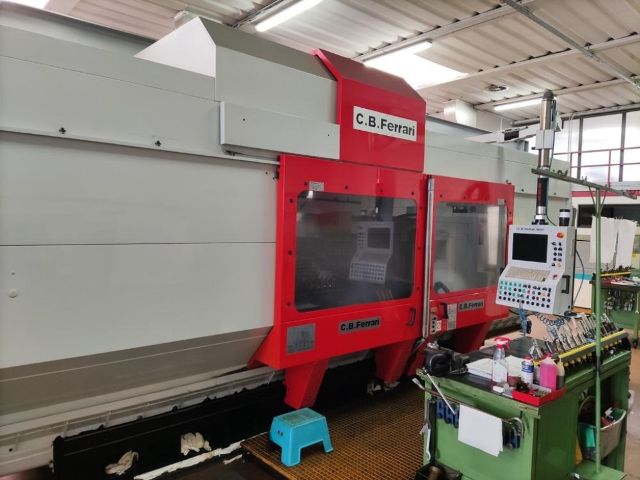

C.B. FERRARI S 630 MACHINING CENTER
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
10064
Cnc ELEXA E580 - HS
X-Axis Travel: 3.000 mm
Y-Axis Travel: 820 mm
Z-Axis Travel: 1.120 mm
Rapid Traverse X, Y, Z: 40 m/min
Tool Magazine: 30 positions, wheel type with arm
Spindle Taper: ISO 40

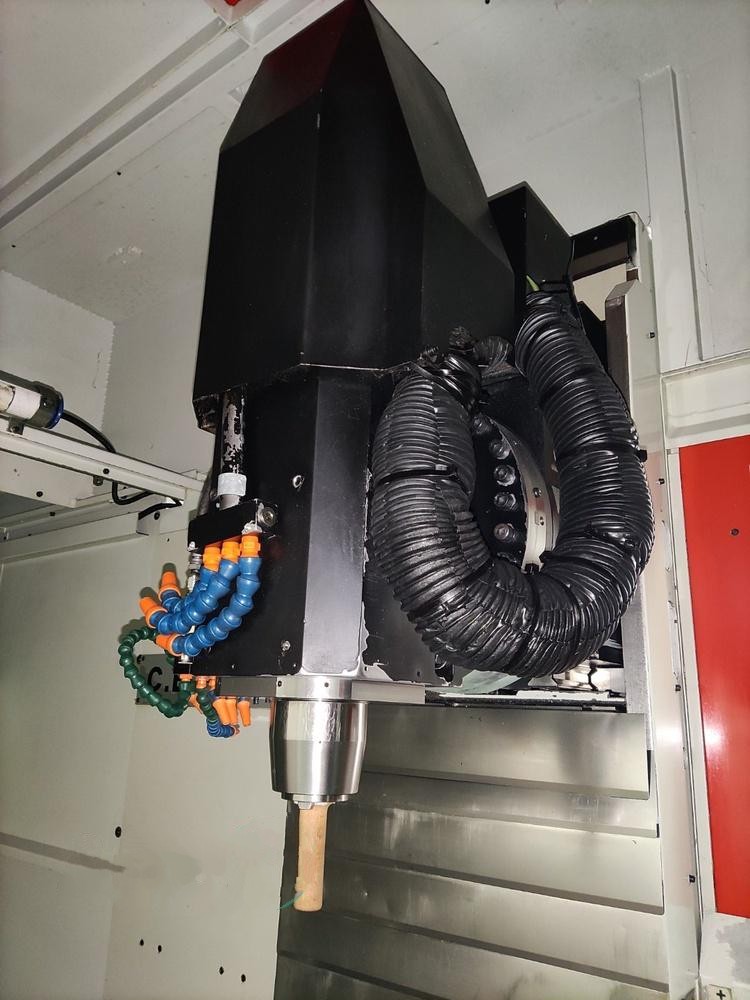

Electro-Spindle Speed: 20.000 rpm
Electro-Spindle Type: 022807
Electro-Spindle Power: 63//83 Nm
EQUIPPED WITH:
- Chip conveyor belt
- Electro-spindle cooling system and accessories
- Tool cooling system for emulsion/oil, external
- Automatic mobile hood
- Continuous head support
- Through-spindle cooling system with drum filter tank
- Tool cooling system air/oil, external

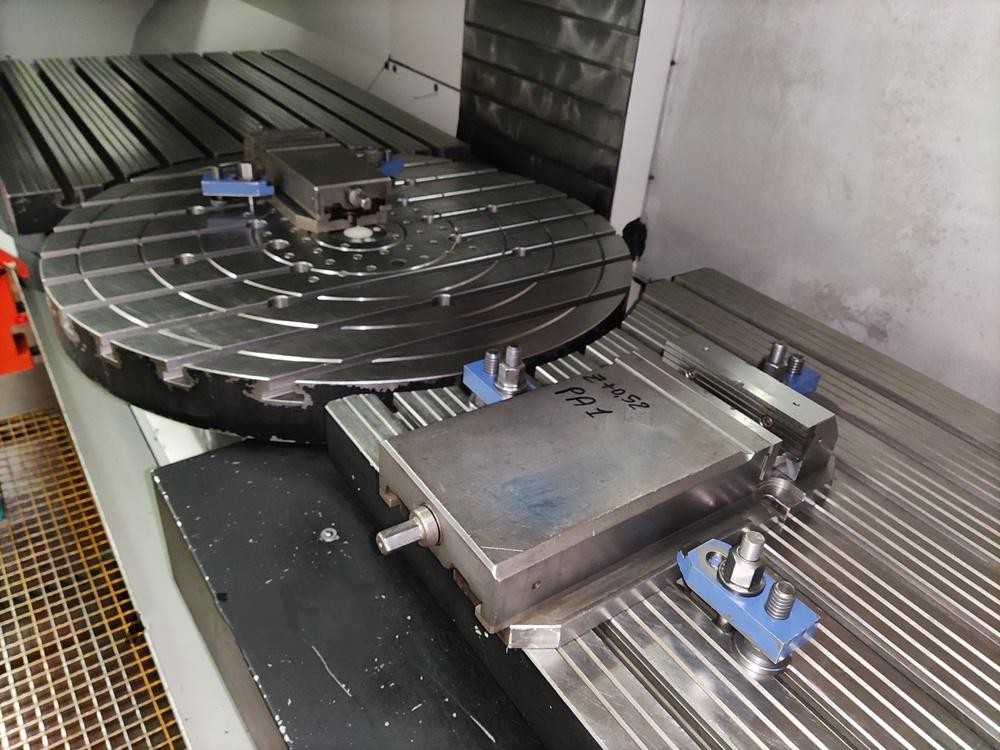

- Rotary table: 0+8 rpm – 2,200 Nm, H = 215 mm
- Platform diameter: 1,000 x 100 mm

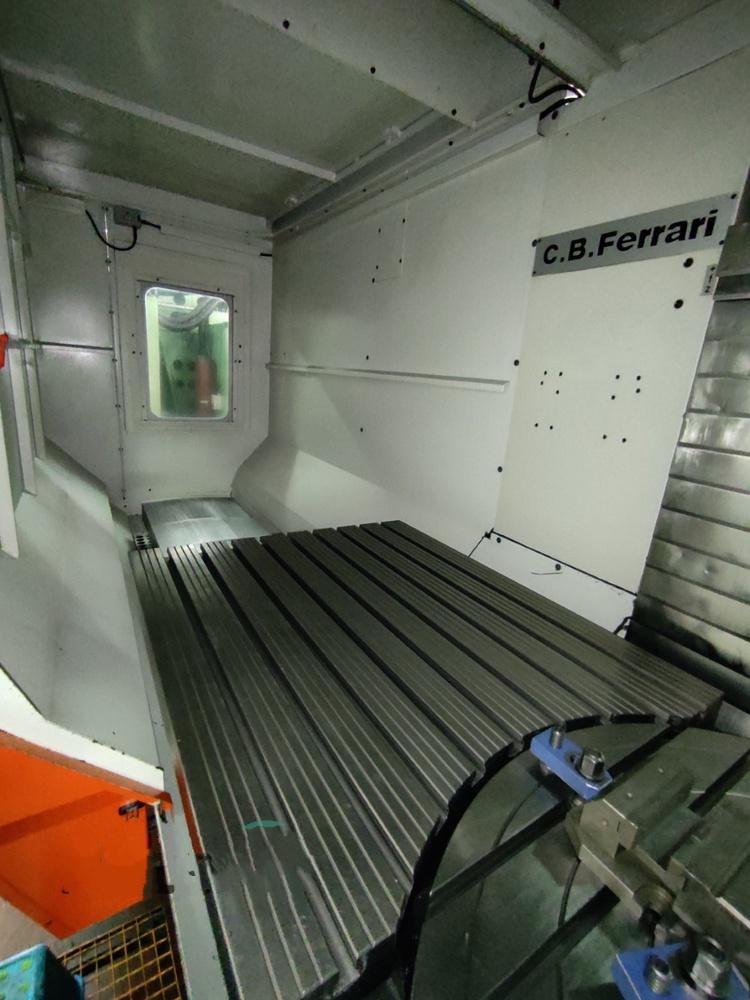

- Left semi-table: 1,200 x 1,000 x 315 mm for 1,000 mm diameter platform
- Right semi-table: 1,200 x 775 x 315 mm for 1,000 mm diameter platform
- Complete enclosure
USED MACHINE
YEAR 2014
IMAGES:
