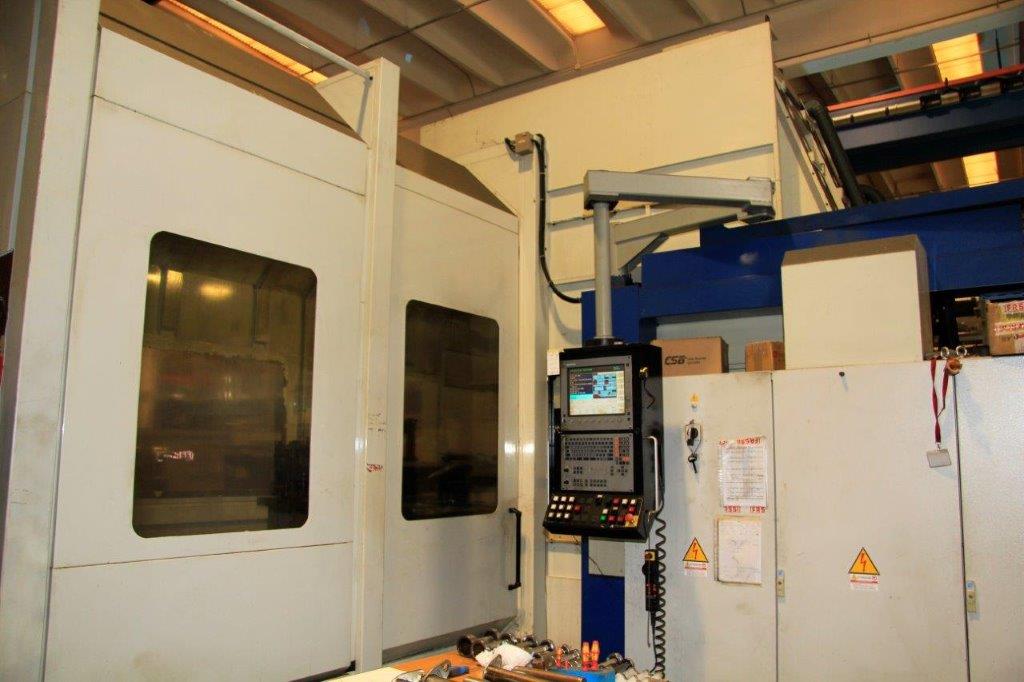

SACHMAN T314HS MILLING E BORING MACHINE

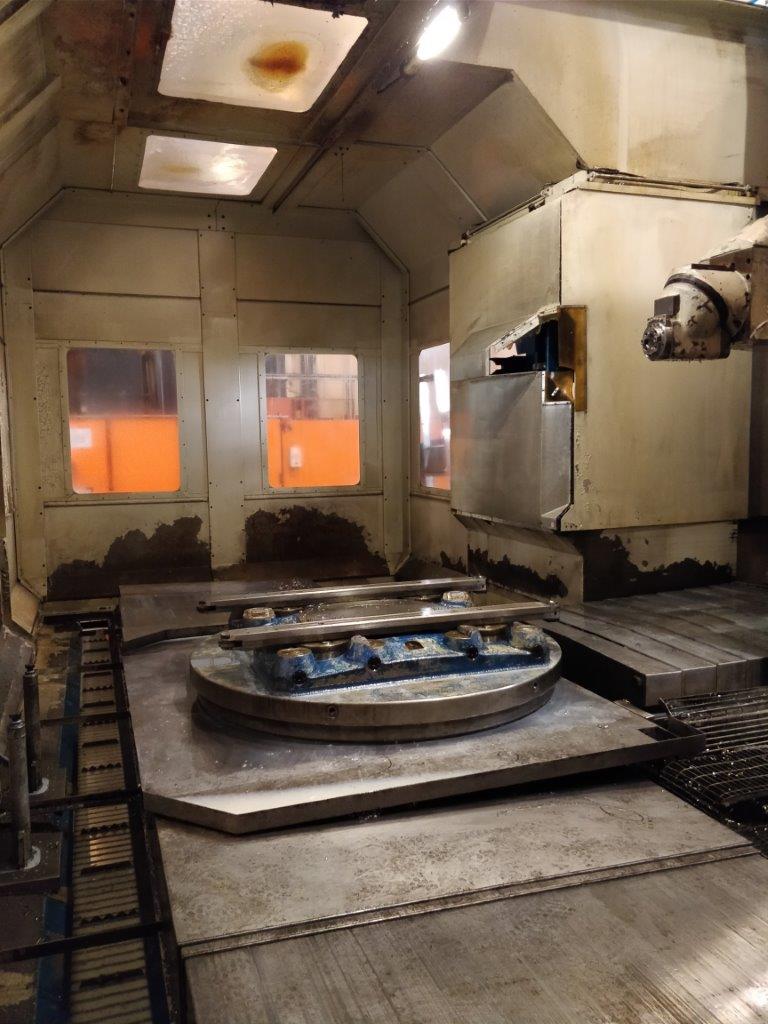

With rotary table
10071
5 Pallets
CNC Control: Heidenhain TNC 530i
Travel
Longitudinal Travel (X-Axis): 3,500 mm
Transversal Travel (Y-Axis): 1,600 mm
Vertical Travel (Z-Axis): 2,000 mm
Table
Table Size: 1,500 × 1,500 mm
Max Load Capacity: 5,000 Kg
Spindle
Continuous Power: 28 kW

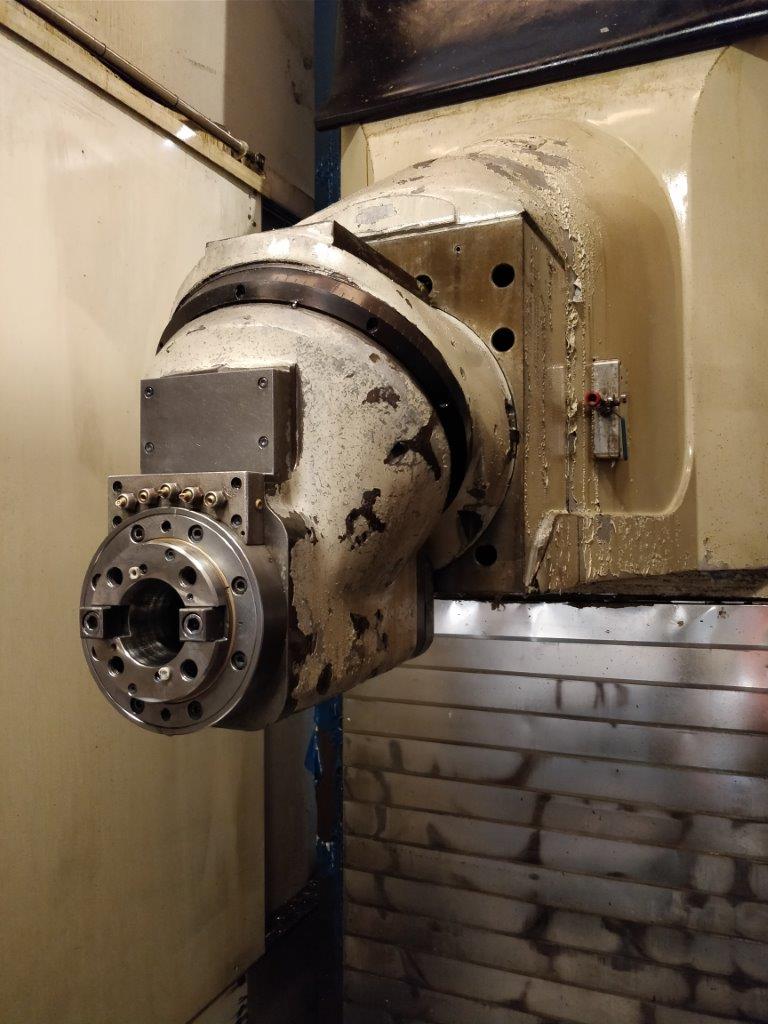

Spindle Speed (Kosmo Head): 5,000 rpm
Tool Taper: DIN 69871-B50
Pull Stud: DIN 69872-B28 (50)
Axes (Digital 20-25 mt)
Nominal Continuous Torque (X-Axis): 55 Nm
Nominal Continuous Torque (Y-Axis): 55 Nm
Nominal Continuous Torque (Z-Axis): 23 Nm
Rapid Feed Rate (X/Y/Z Axes): 18 m/min
Working Thrust (X-Axis): 1,300 daN
Working Thrust (Y-Axis): 1,300 daN
Working Thrust (Z-Axis): 1,300 daN

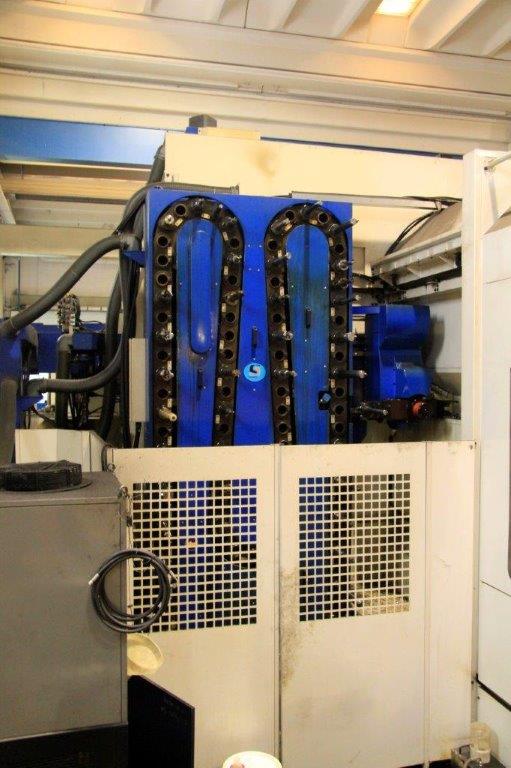

Tool Magazine
Tool Positions: 100
Max Tool Diameter: 125 mm
Max Tool Diameter with Adjacent Positions Free: 220 mm
Max Tool Length: 400 mm
Max Tool Weight: 35 daN
General Specifications
Max Machine Weight (Including Rotomors Group): 66,210 daN
Max Installed Power: 48 kw
USED MACHINE
IMAGES:
