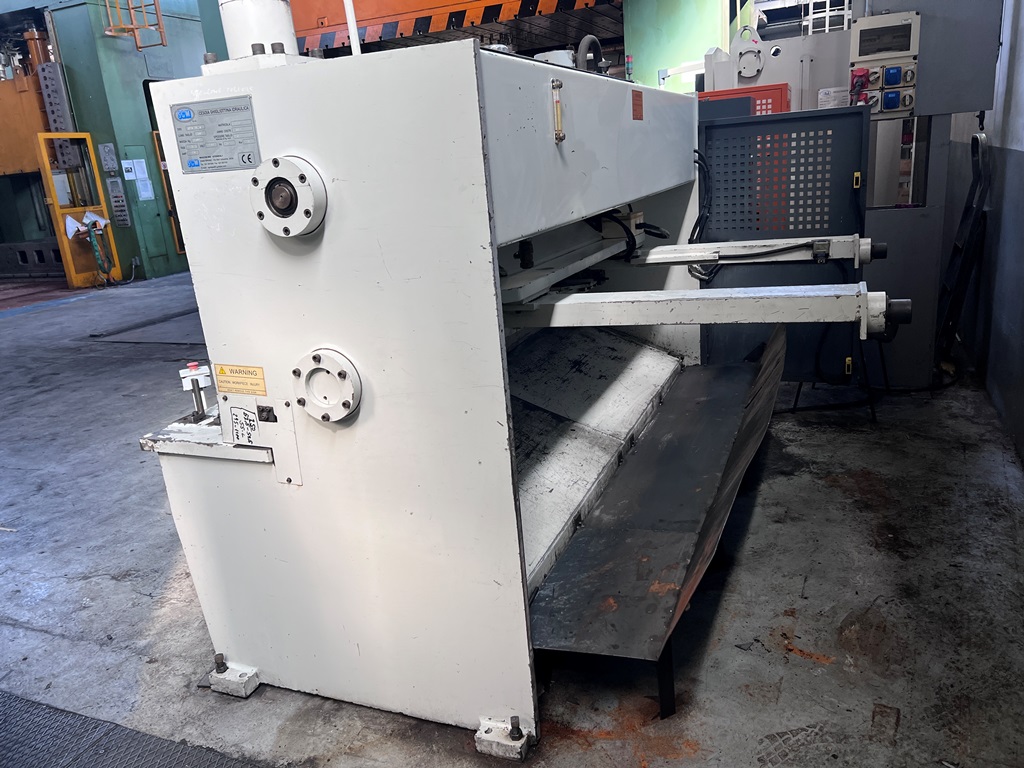

SHEAR MORGEN HGA 25 / 6
Guillotines shear
sheet metal working - Used Machines
.JPG)
.JPG)
.JPG)
MORGEN
10137
10137
Cutting length mm 2.500
Cutting thickness mm 6
Max cutting power KN 218
Back gauge travel mm 750
Cutting angle adjustment degrees 1.5
Strokes per minute 18 - 36
V-opening mm 30
Number of hold-downs n° 12
Length mm 2.995
Depth mm 1.750
Height mm 1.910
Approximate weight kg 4.500
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
