CENTRE HECKERT MOD. CWK 400
Double pallet
machine center - horizontal - Used Machines
HECKERT
New04760
New04760
HORIZONTAL
CNC SIEMENS SINUMERIK 840C
-AXIS X MM.650
-AXIS Y MM.500
-AXIS Z MM.650
-HEIGHT FLOOR TO WORKING SURFACE MM.1000
-TOOL MAGAZINE N. 60
-MAX TOOL DIAMETER MM.80
-MAX TOOL DIAM FREE MAGAZINE MM.125
-MAX TOOL LENGHT MM.350
-MAX TOOL WEIGHT KG.10
-MAX LOAD IN MAGAZINE KG.300
-SPINDLE DIAM MM.70
-SPINDLE TAPER SK 40 / DIN 69871
-ENGINE SPINDLE SPEED RANGE MIN-1 50-10000
-FEDD RATES AXIS X,Y,Z KN 14
-SIZE PALLET MM.400X400
-TIME CHANGE PALLET SEC. 8
-N. PALLET 2
-ENGINE POWER KW 4
-HYDRAULIC PUMP PRESSURE 90 BAR
-MACHINE WEIGHT APPROX. KG.12500
-OVERALL SIZE APPROX MM.4730X3720
-MACHINE HEIGHT APPROX. MM.2850
USED MACHINE

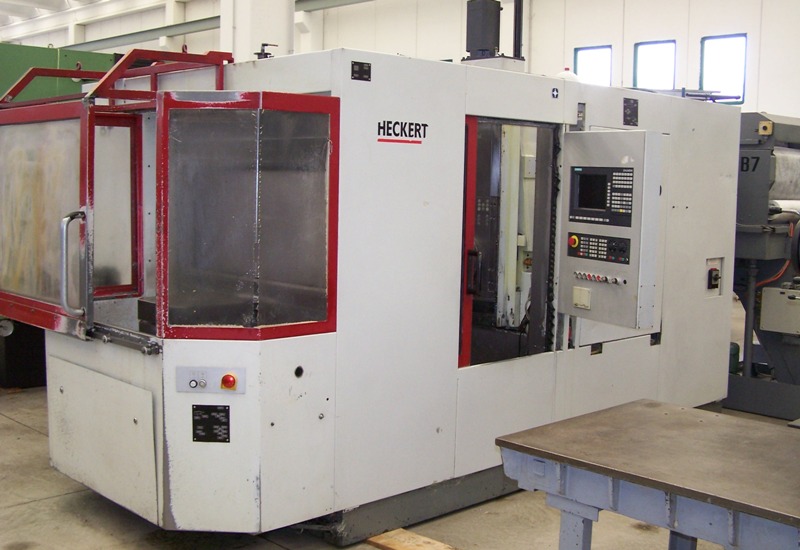

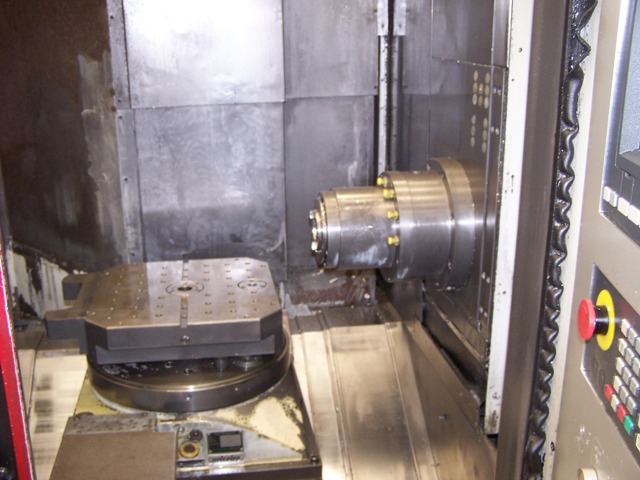

IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
