PORTAL MILLING JOBS-MULTINORMA
milling gantry/portal - Used Machines
JOBS
New04594
New04594
MOD. 25-70

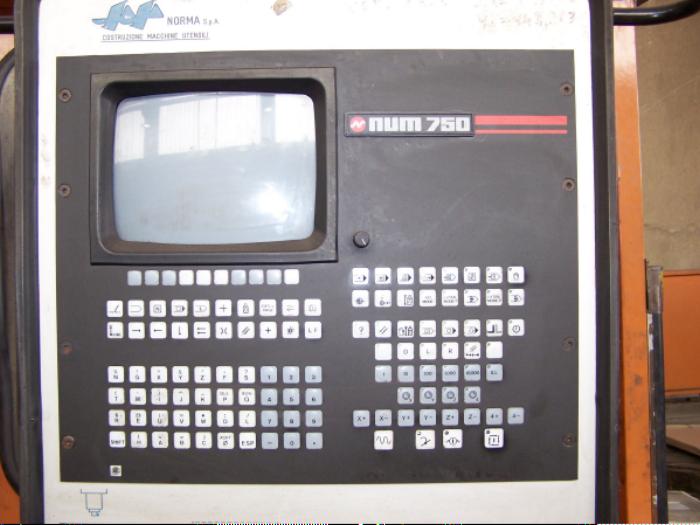

CNC NUM 750F
AXIS X: mm 7000
AXIS Y: mm 2300
AXIS Z: mm 500
Min-max distance spindle-table 900-1400
Distance between column mm 2500
Table dimnsions mm 7000x2100
Spindle Taper ISO 50
Motor power 19/24 KW
Automatic tool change 40 positions
Max. diameter Tools 200 mm
Max. lenght Tools 400 mm
Max. weight Tools 25 Kg
Chip conveyor
USED MACHINE

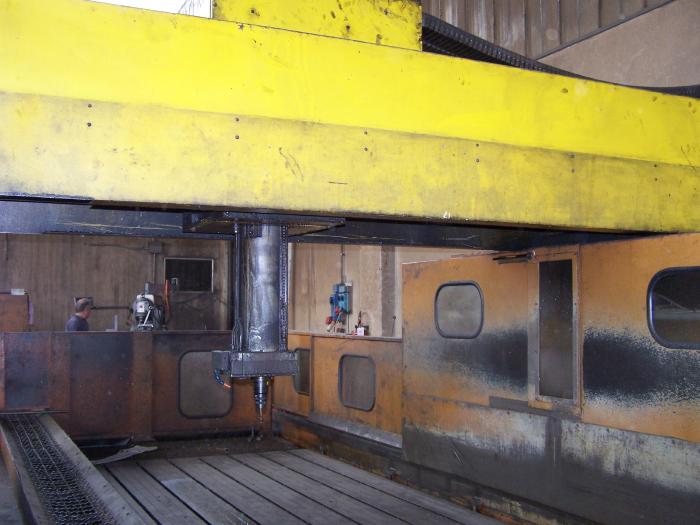

IMAGES:
