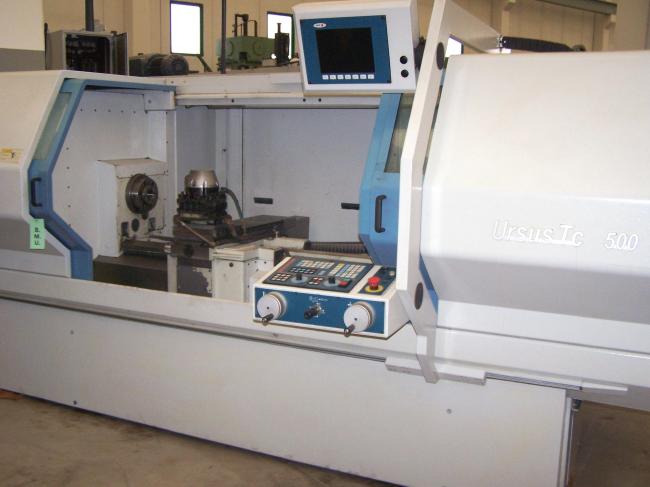

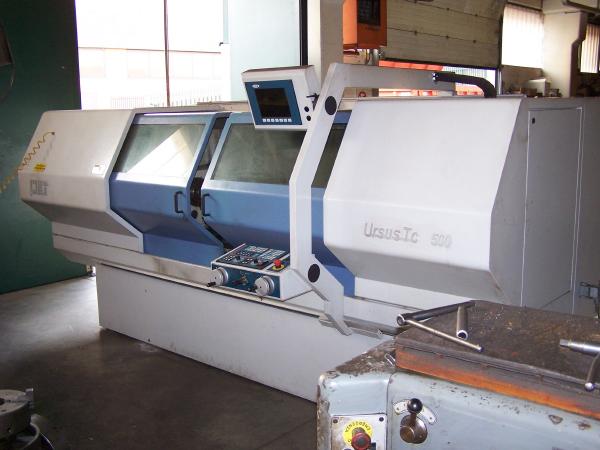

LATHE CMT MOD. URSUS TC 500X1500
Autoteaching
lathe cnc - Used Machines
CMT
New04801
New04801
AUTOLATHE

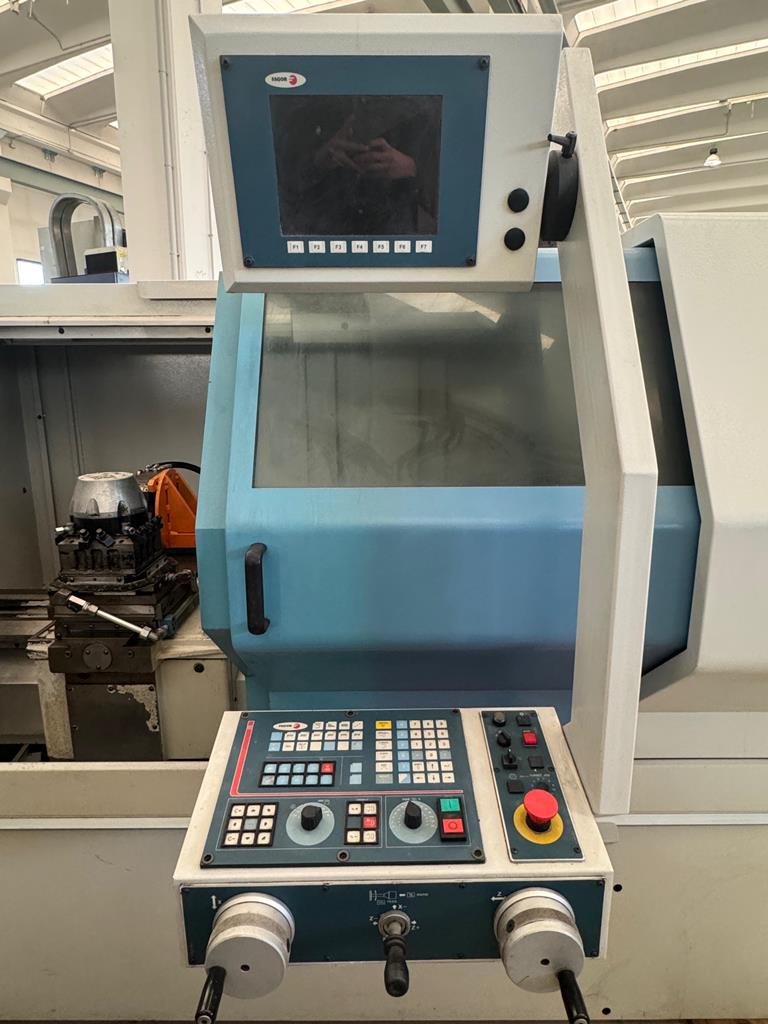

CNC FAGOR 8055T
-HEIGHT OF CENTER FROM PLAN MM.250
-DISTANCE BETWEEN CENTRE MM.1500
-MAX DIAM OVER PLAN MM.505
-MAX DIAM OVER SLIDE MM.265

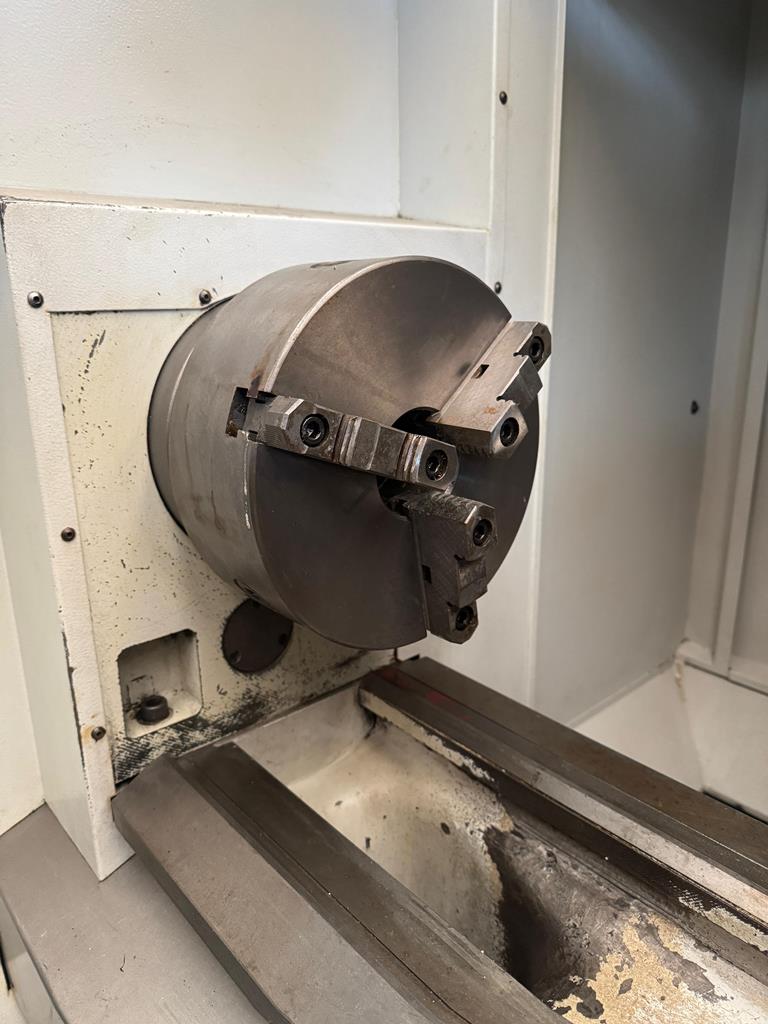

-SPINDLE NOSE C.L. 6''
-SPINDLE BORE MM.52
-SPINDLE SPEED RANGE N. 02 A AUTOMATIC CHANGE
-MAX SPINDLES SPEED TURNS/MIN 3100
-AXIS MOVEMENT BALL SCREWS
-RAPID FEEDRATE AXIS Z M/M 5
-RAPID FEEDRATE AXIS X M/M 5
-QUILL TRAVEL MANUAL MM.220
-QUILL DIAMETER MM.68
-CONO MORSE N. 5
-SUPPLY VOLTAGE KW 20
-APPROX. OVERALL DIMENSIONS MM 4200x1900x1500H
USED MACHINE
IMAGES:
FILL OUT OUR FORM FOR MORE INFORMATION
