LATHE TITAN MOD. D33 CNC
lathe vertical - Used Machines
TITAN
05993
05993
CNC ECS 2400
N°02 vertical carriage
Platform diameter mm.3000
Max working diameter mm.3160
Min diameter internal working mm.400
Max height working piece (under movable cross slide) mm.2200
Max weight piece Ton.18
Main drive motor power kW 55
Table speed giri/minute 0,005-92
Cross rail stroke over column mm.1600
Positioning feed mm/minute 400
Motor c.a. for cross rail lifting kW 7,5
Vertical tool holder carriage sx:
Ram vertical stroke mm.1000
Ram cross section mm.224x224
Vertical tool holder carriage dx:
Ram vertical stroke mm.600
Overall dimensions mm.5300x7600x6000h
Weight Kg 47500
Equipped with:
Axis C
Milling cross slide
USED MACHINE

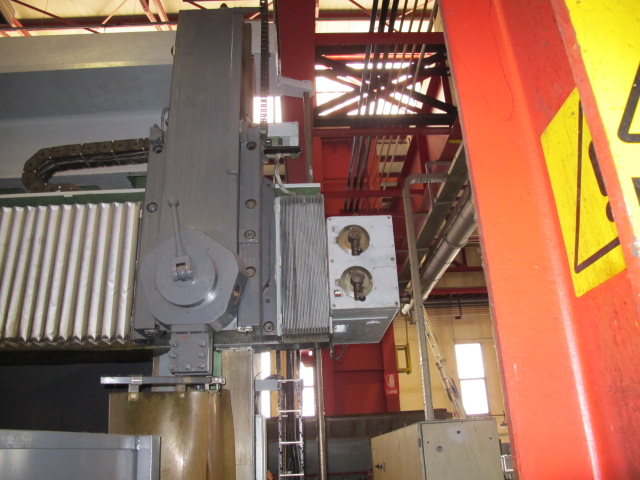

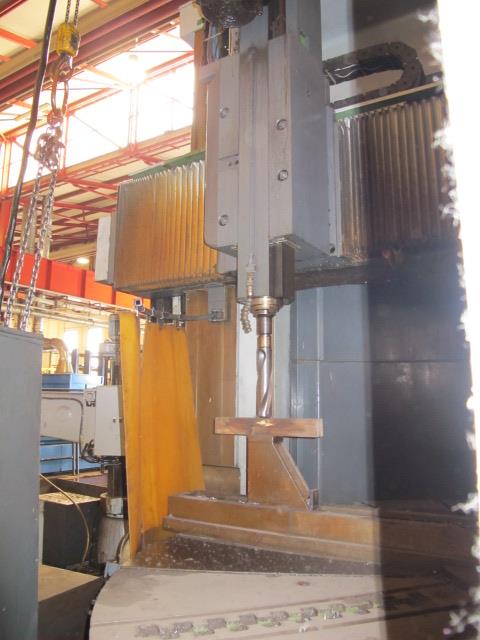

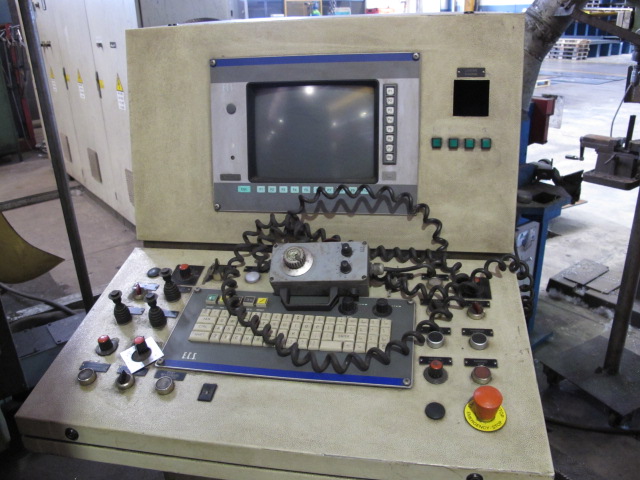

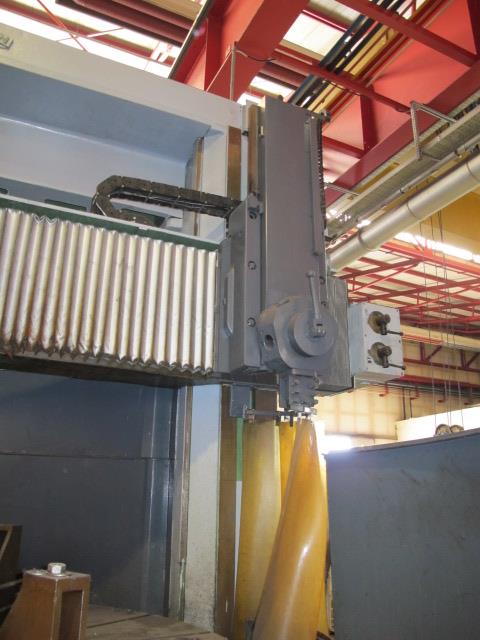

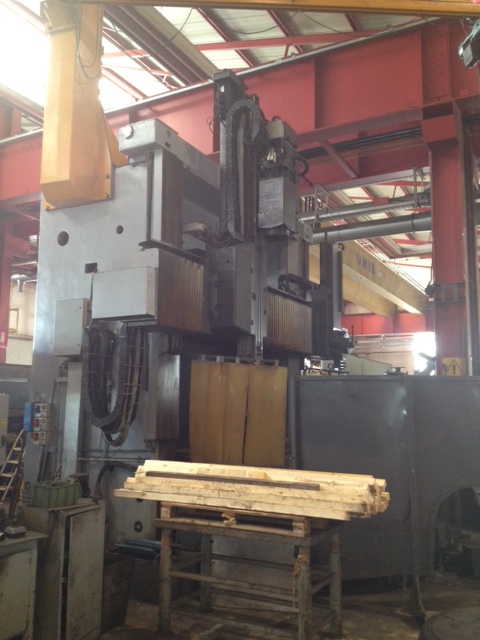

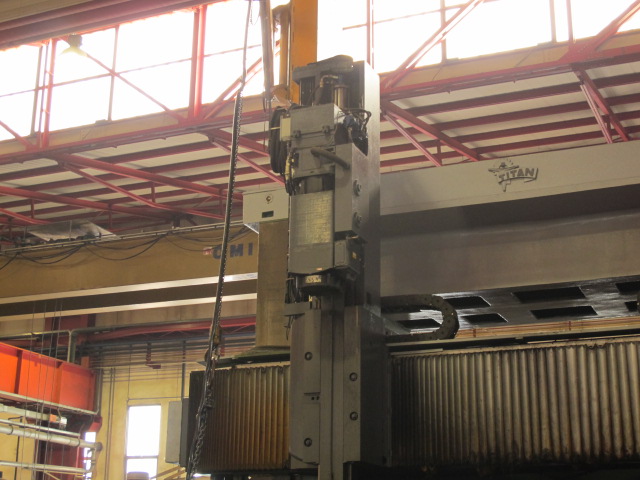

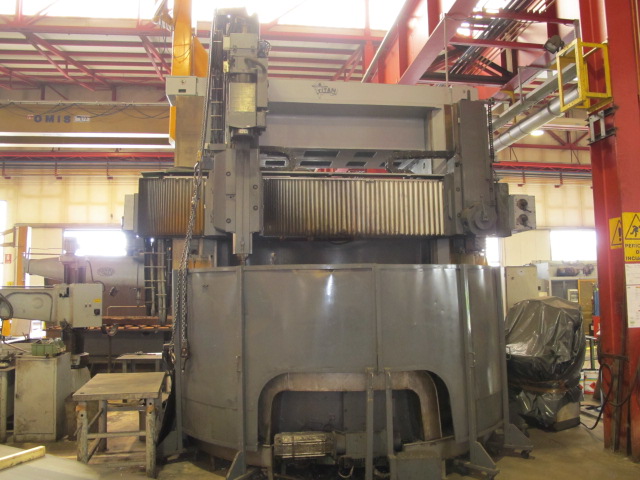

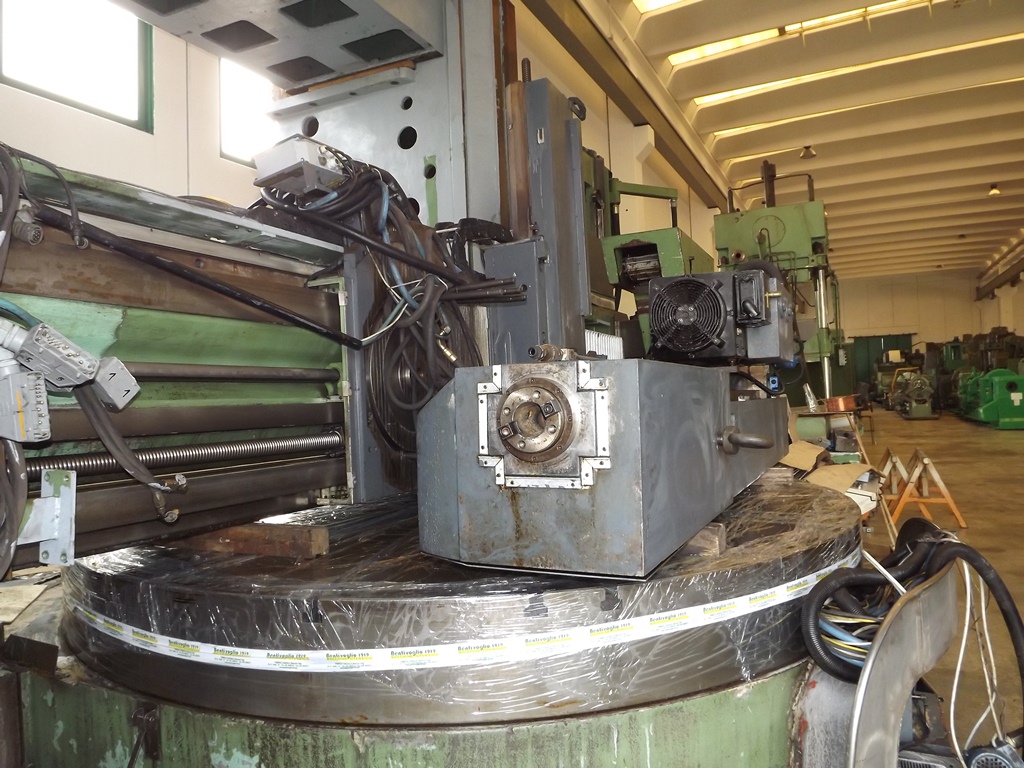

IMAGES:
