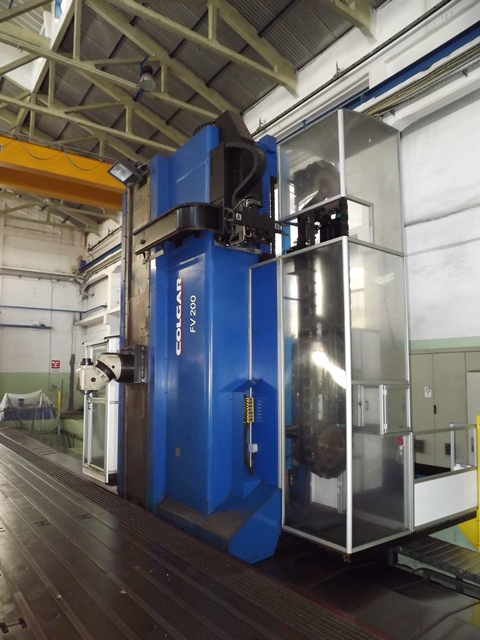

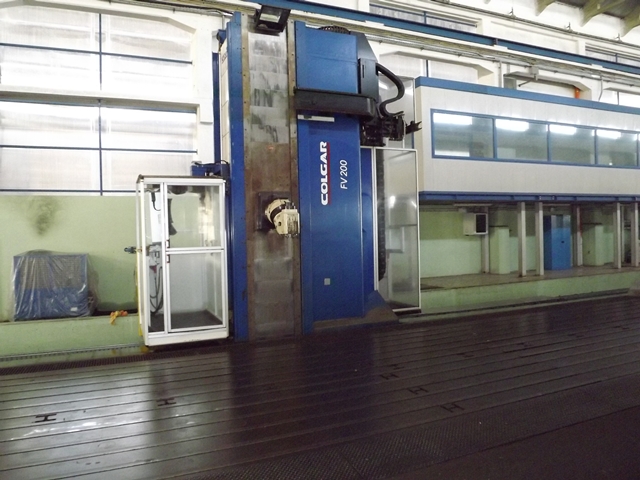

BORING/MILLING COLGAR FV200
Floor type
VIDEOS:
06098

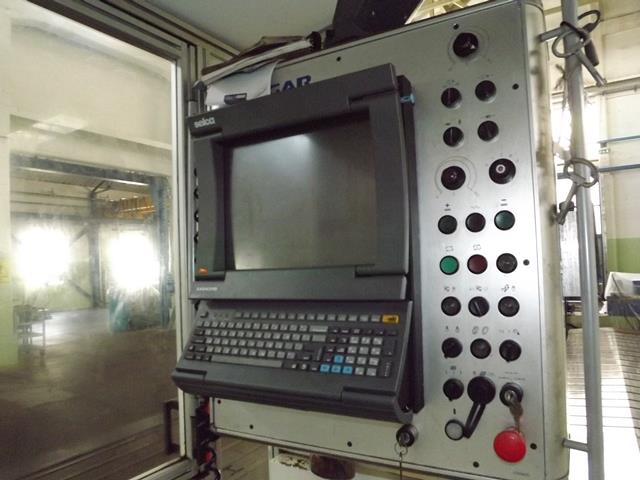

CNC HEIDENHAIN TNC 530
AXIS:
Axis X longitudinal travel mm 24.000
Axis Y head max vertical travel mm 3.000
Axis Z head cross travel mm 1.500
RAM SIZE: mm 430x530
SPINDLE:
Spindle taper ISO 50
Spindle speed revolution g/min 5:6000
-constant torque g/min 5:310
-constant power g/min 310:6000
-max torque (S1/S6) Nm 900/1150
FEEDRATES ROLLER GUIDEWAY
Rapid axis X,Y,Z mm/min 40.000
Working thrust N 20.000
MOTORS POWER:
Spindle motor in continuous (S1-100%) C.A. kW 29
Spindle motor S6-40% C.A. kW 37.5
Equiped with:
Automatic tool change 60 positions
Automatic head change

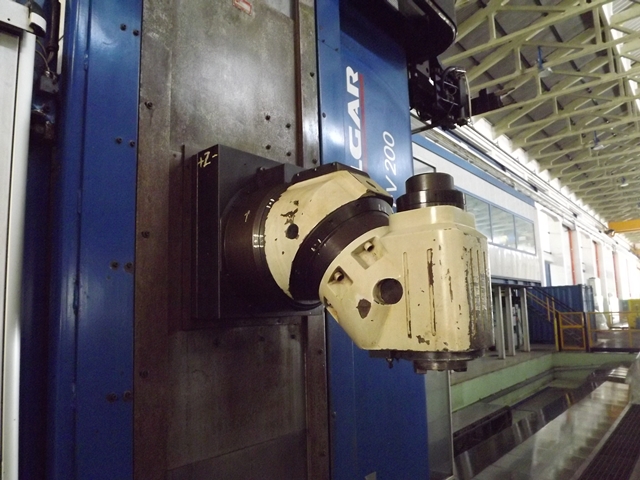

Bi-rotation automatic head HURON TA100 - 2,5°/2,5° - kW 29 - 4000 Rpm - 1000 Nm
Support head

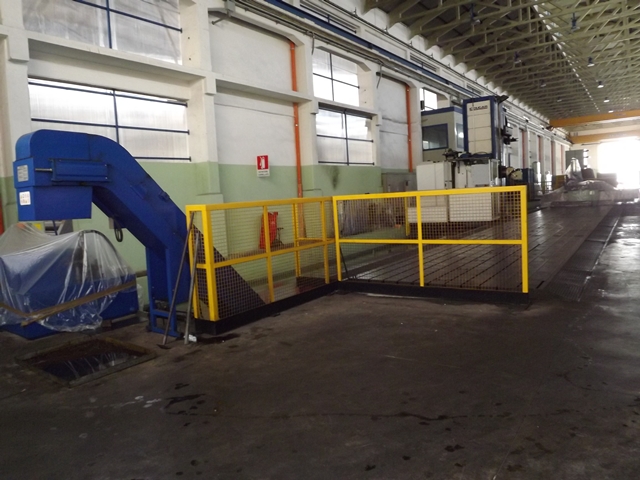

Chain type chip conveyor
Coolant through spindle 20 bar
Coolant outside spindle 30 bar

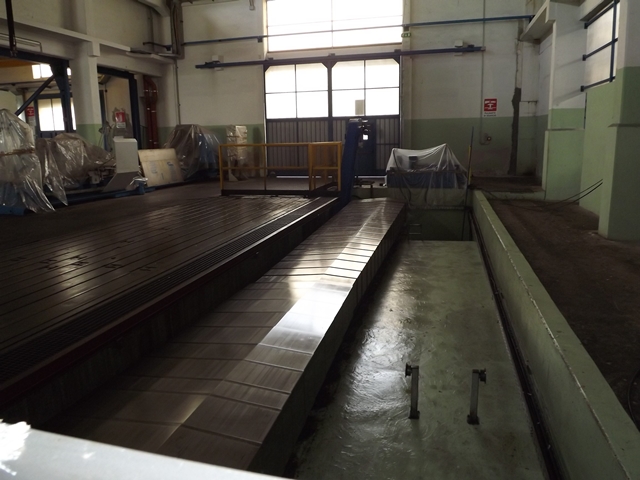

Clamping plate
N.8 mm 6.500x1.500x350H
Total mm 26.000x3.000x350H
USED MACHINE
YEAR: 2008
IMAGES:
VIDEOS:
