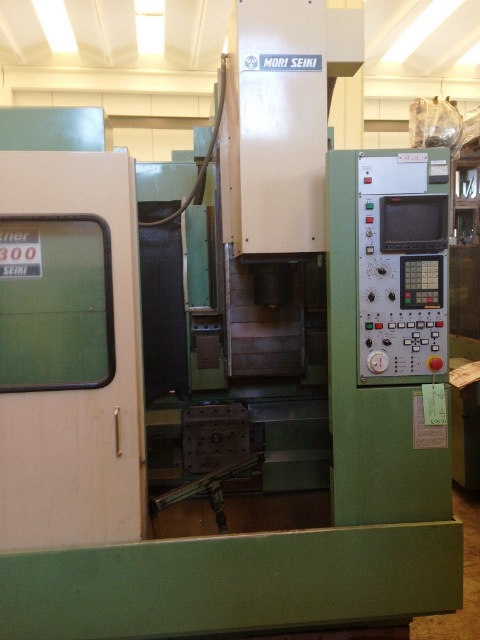

CENTER MORI SEIKI MOD.M-300 A1
Single pallet
machine center - vertical - Used Machines
MORI SEIKI
06503
06503

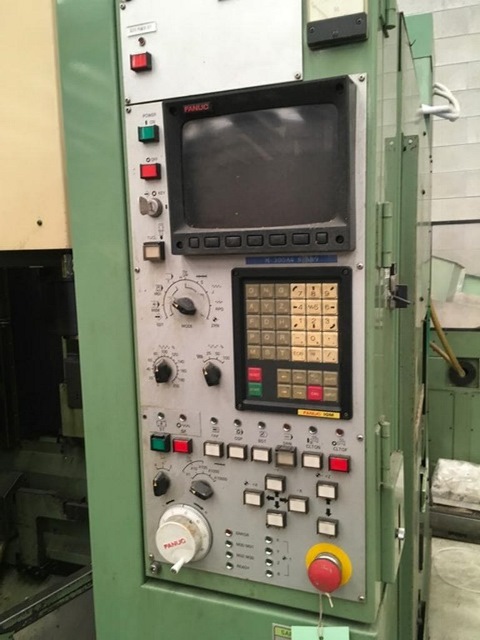

CNC FANUC 10M
PALLET
Pallet number 10
Pallet size mm 315
Pallet indexing angle 7.5 gradi
Max weight on the pallet Kg 150
Pallet center height mm 750
TRAVEL
X axis mm 400
Y axis mm 300
Z axis mm 495
Distance between spindle center and pallet top mm 25-325
Distance between spindle nose and pallet center mm 125-620
FEED
Rapid feed rate m/min 24
Cutting feed rate m/min 5
SPINDLE
Spindle speed rpm 100-6000
Spindle motor AC 3.7/2.2 kW
Spindle taper NT40
ATC
Number of tools 20 pcs.
Max tool diameter mm 110
Max tool diameter (with adjacent tools) mm 90
Max tool lenght mm 250
Max tool weight Kg 8
Total power consumption KVA 18
Total machine weight Kg 7270
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
