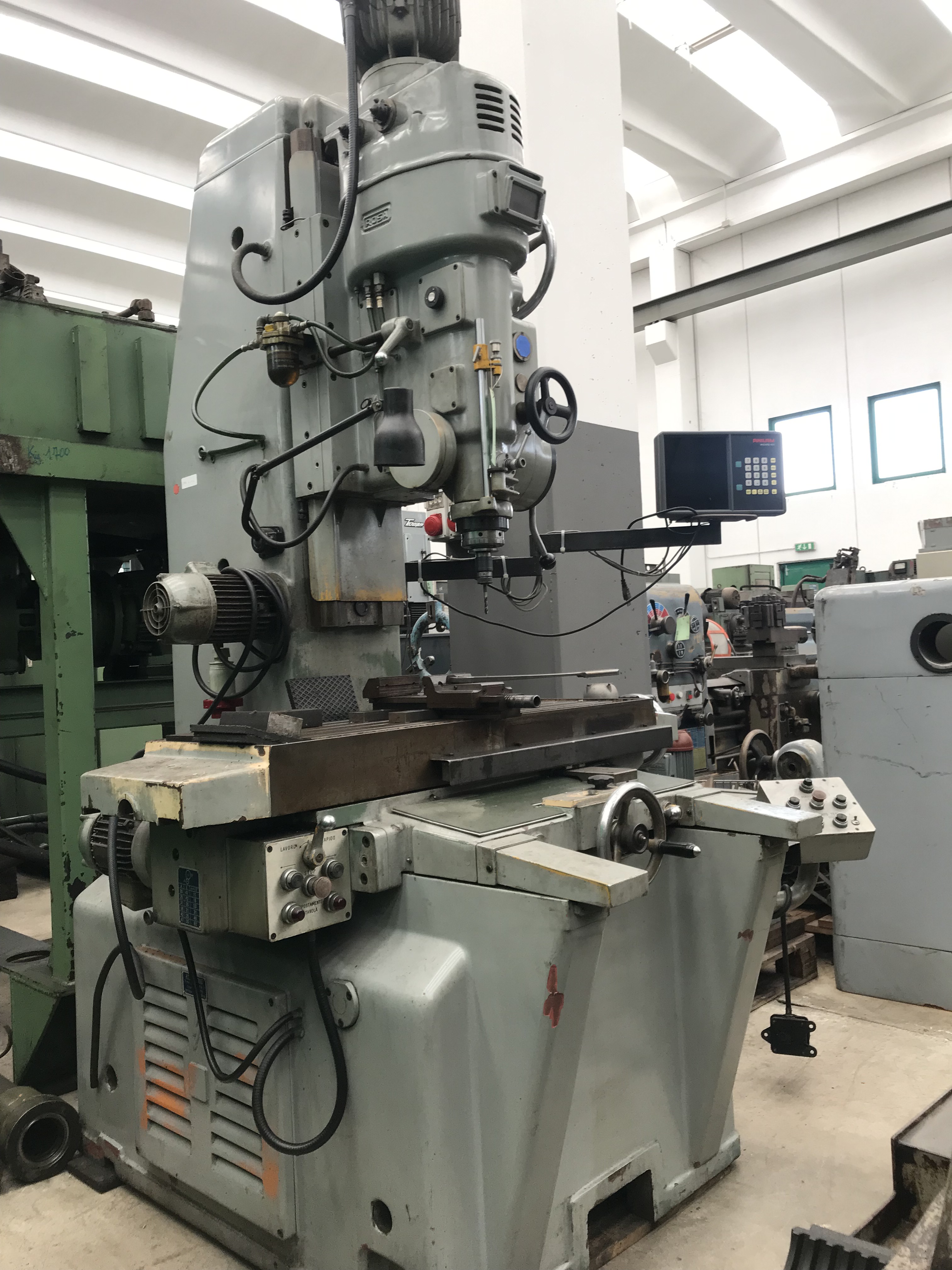

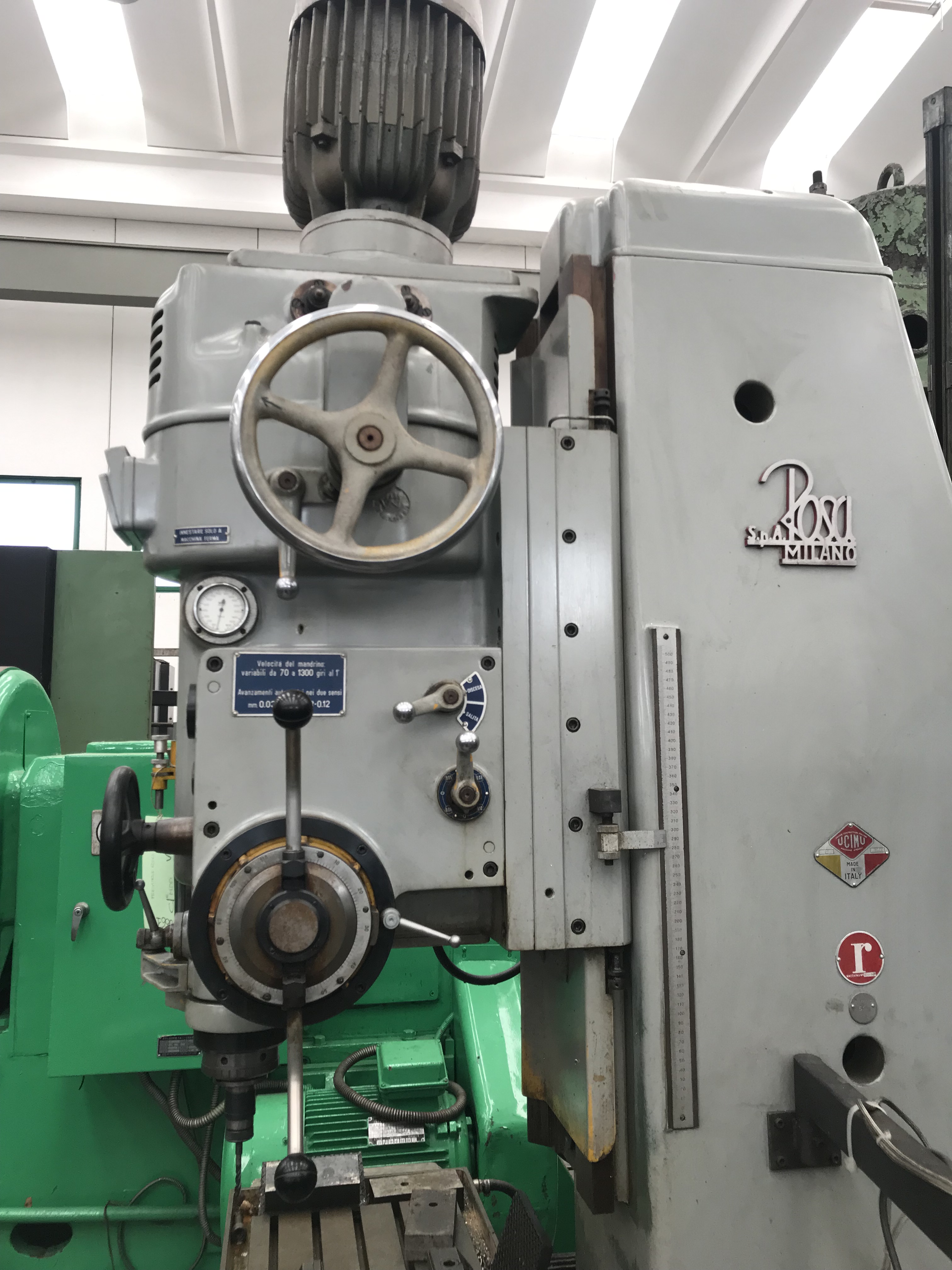

JIG BORING ROSA MOD. 35 ALZ
Vertical
milling - Used Machines
ROSA
06617
06617
Max hole diameter on steel mm 30
Max boring diameter on steel mm 150
Boring depht on steel mm 200
Speed spindle rpm 70/1300
Vertical head travel mm 500
Max distance between table and side spindle mm 600
Min distance between table and side spindle mm 10
Working table surface mm 900x320
Longitudinal travel mm 500
Cross travel mm 320
Nwt weight Kg 3000
Equipped with:

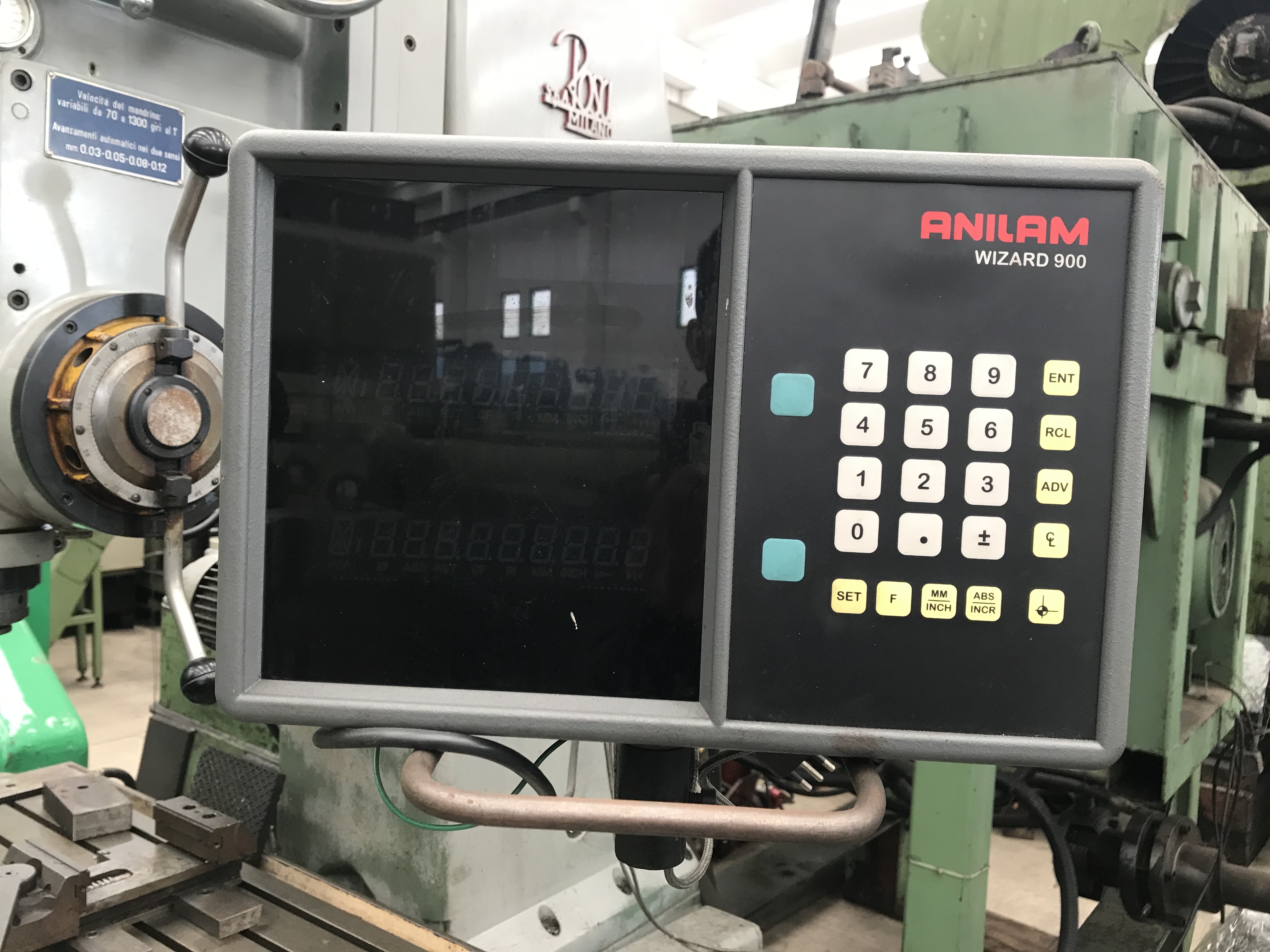

Digital read out
USED MACHINE
FILL OUT OUR FORM FOR MORE INFORMATION
