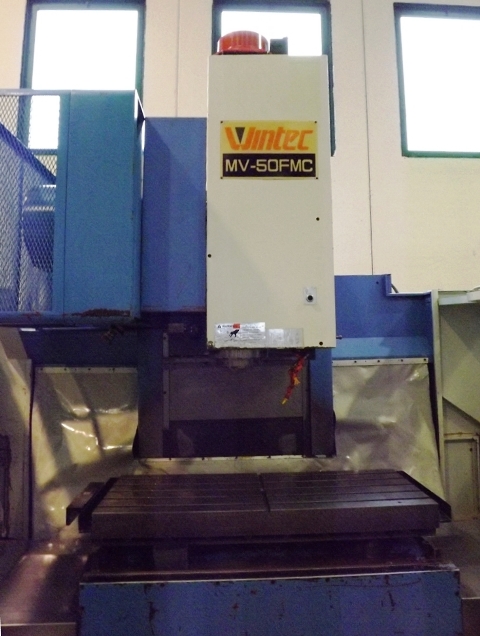

CENTER WINTEC MOD. MV-50 FMC
Single pallet
06624

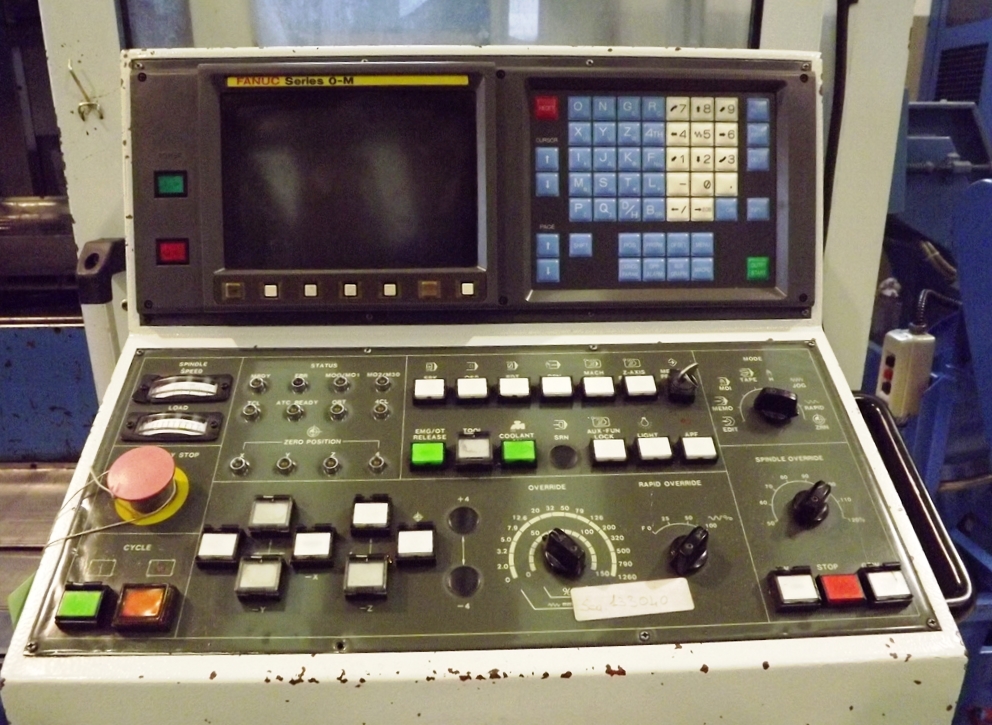

CNCFANUC O-M
STROKE AND WORKING AREA:
Axis X mm 1050
Axis Y mm 560
Axis Z mm 650
Distance between spindle and table mm 100-750
Distance between spindle center and column mm 635
SPINDLE:
Spindle nose ISO 50
Spindle speed rpm 32-3200
RAPID FEED:
Rapid feed axis X/Y mm/1' 24000
Rapid feed axis Z mm/1' 12000
AUTOMATIC TOOLS CHANGE:
Magazine capacity n.30 positions
Max tool diameter mm 140
Max tool diameter without adjacent tools mm 200
MAx tool lenght mm 400
Max tool weight Kg 15
AUTOMATIC PALLET CHANGE AND E TAVOLE PORTAPEZZI:
Table n.2
Table dimensions mm. 550x1400
Table load Kg 700 each
T-slot width mm 18
MOTORS
Spindle motor (continuous/30 min.) kW 15/18.5
MACHINE :
Total power input KVA 52
Overall dimensions with cabin mm 6040x4160x3395
Total weight installed machine Kg 10000
Equipped with:

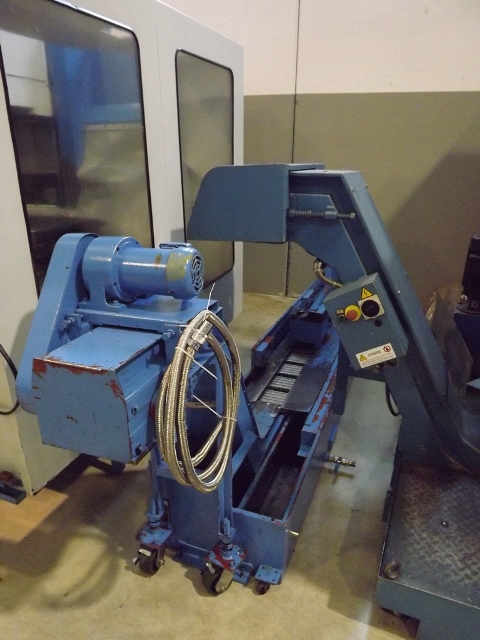

Chip conveyor
USED MACHINE
