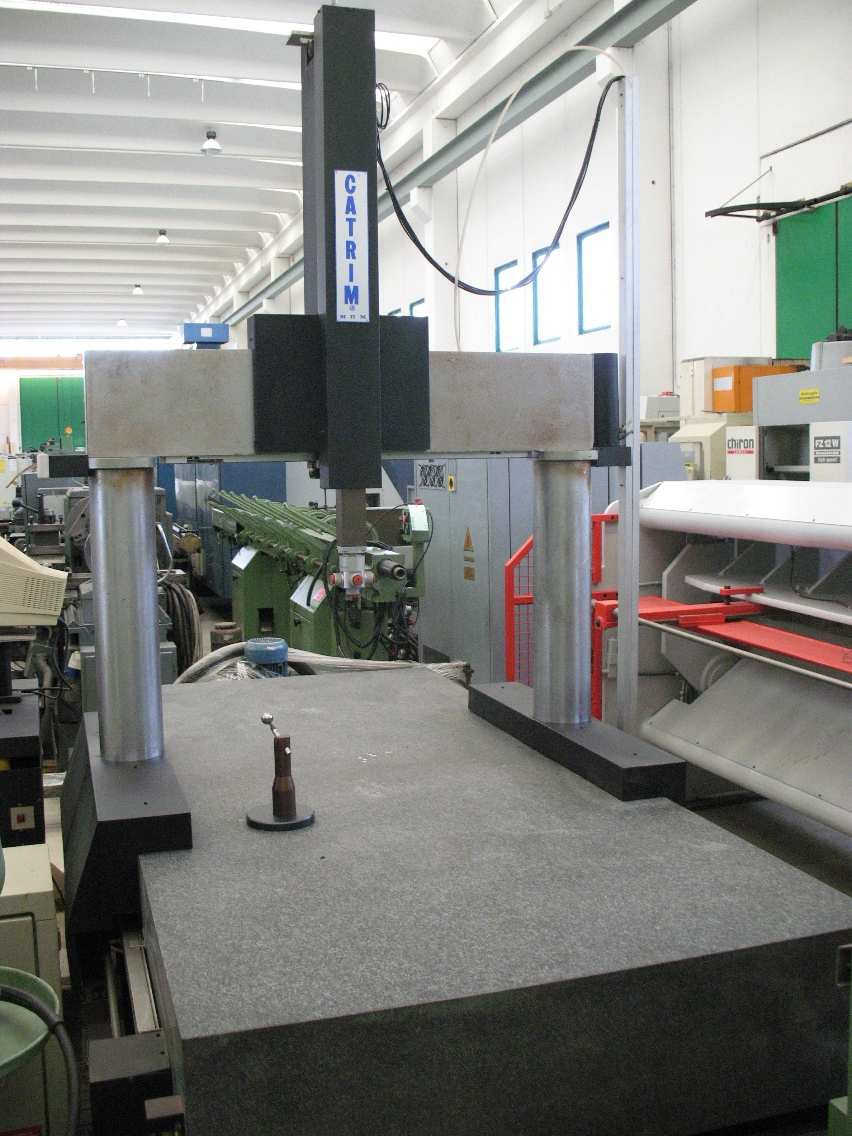

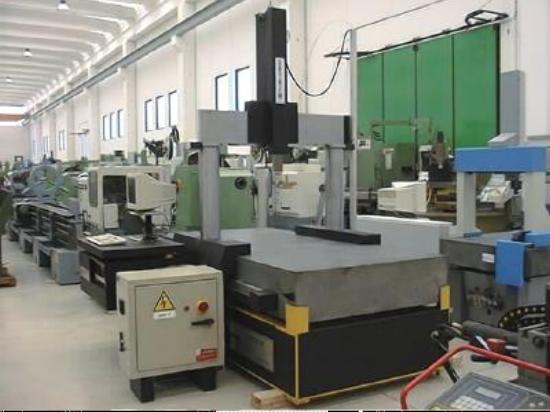

MOD. CATRIM
TRAVELS:
-AXIS X MM.1500
-AXIS Y MM.800
-AXIS Z MM.500
DIABASE MEASURING TABLE:
-THICKNESS MM.350
-WIDHT MM.1150
-LENGHT MM.2500
-MAX LOAD KG.3500
ACCURACY:
-OPTICAL SLIDE ACCURACY / METER +/- MM. 0.003
-DIABASE SURFACE PLANARITY MAX MM. 0.004
-POINT REPEATABILITY +/- MM. 0.0025
POSITION STATIC ACCURACY:
-AXIS X +/- MM. 0.006
-AXIS Y +/- MM. 0.005
-AXIS Z +/- MM. 0.003
-RESOLUTION AXIS X/Y/Z MM. 0.0025
-RESOLUTION AXIS QUOTE VISUALIZATION MM.0.0012
OVERALL DIMENSIONS:
- LENGHT MM.2530
- WIDHT MM.1950
- HEIGHT MM.2845
- WEIGHT KG.3200
EQUIPPED WITH:
* Motorized axis
* Granite table
* PC Software

USED MACHINE

IMAGES:
